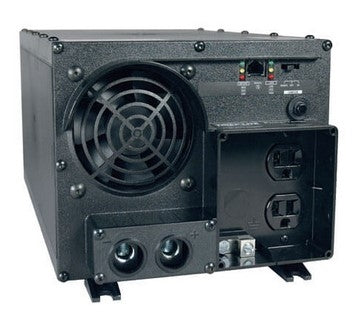

Tripplite PV2400FC Inverter 2400WATT 24VDC in, 120VAC Out 2x 15AMP Outlets
Tripplite PV2400FC Inverter 2400WATT 24VDC in, 120VAC Out 2x 15AMP Outlets
Special Orders
With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available by special order.
Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.
Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.
SKU: B&E Part Number: PV2400FC
Regular price
$1,370.22 CAD /Each
Regular price
/Each
Sale price
$1,370.22 CAD
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0
Status: Available to Order
B&E Calgary: 0
B&E Saskatoon: 0
Status: Available to Order
Quantity
Couldn't load pickup availability
Product Description
This product is not a normally stocked item - special order , please inquire to get an estimated lead time
2400W PowerVerter plus industrial-strength inverter with 2 outlets
Continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs.
2400W continuous output power
Peak surge output: Overpower (up to 1 hour), 3600 watts; Double-Boost (up to 10 seconds), 4800W
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 250a should be positioned no more than 18" from the PV2400FC's battery in the positive line.
Requires 24V DC input source capable of delivering 120A for the required duration (when used at full capacity). For automotive applications, professional hard wire installation with 250A battery system fusing is recommended
Features:
Converts 24V DC battery power to 120V AC power
Set of 2 bolt-down DC wiring terminals for 24V battery connection; 2 x NEMA 5-15/20R outlets
Frequency control for operating stability High-efficiency operation conserves batteries to prolong run time
Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
DC fusing protects inverter against overload
High-impact polycarbonate housing RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
2400W PowerVerter plus industrial-strength inverter with 2 outlets
Continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs.
2400W continuous output power
Peak surge output: Overpower (up to 1 hour), 3600 watts; Double-Boost (up to 10 seconds), 4800W
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 250a should be positioned no more than 18" from the PV2400FC's battery in the positive line.
Requires 24V DC input source capable of delivering 120A for the required duration (when used at full capacity). For automotive applications, professional hard wire installation with 250A battery system fusing is recommended
Features:
Converts 24V DC battery power to 120V AC power
Set of 2 bolt-down DC wiring terminals for 24V battery connection; 2 x NEMA 5-15/20R outlets
Frequency control for operating stability High-efficiency operation conserves batteries to prolong run time
Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
DC fusing protects inverter against overload
High-impact polycarbonate housing RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
