Tripplite PV2000FC Inverter 2000WATT 12VDC in, 120VAC Out 2x 15AMP Outlets
Tripplite PV2000FC Inverter 2000WATT 12VDC in, 120VAC Out 2x 15AMP Outlets
This Item is Available by SPECIAL ORDER
SKU: B&E Part Number: PV2000FC
Regular price
$1,178.24 CAD /Each
Regular price
/Each
Sale price
$1,178.24 CAD
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0
Status: Available to Order
B&E Calgary: 0
B&E Saskatoon: 0
Status: Available to Order
Quantity
Couldn't load pickup availability
Product Description
This product is not a normally stocked item - special order , please inquire to get an estimated lead time

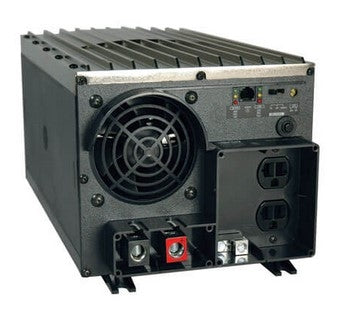

2000W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 2000W of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high-current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs. Built-in RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
OPTIONAL FEATURES: Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shut off or turn on inverter power in response to loads of any level. Ignition Switch Control Jack connects inverter to vehicle ignition system to automatically control inverter. Inverter ON/OFF Relay Jack connects to a user-supplied on/off indicator for remote visual status of the operation of the inverter.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 400a should be positioned no more than 18" from the PV2000FC's battery in the positive line.
Requires 12V DC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hard wire installation with 400A battery system fusing is recommended
Features:
Allows users to run large, motorized AC appliances from any 12V battery or automotive DC system
Converts 12V DC battery power to 120V AC power
2000W continuous output power
Peak surge output: OverPower (up to 1 hour) 3000W, Double-Boost (up to 10 seconds) 4000W
2 x NEMA 5-15/20R outlets; DC input terminals for 12V battery connection
Frequency control for operating stability
High-efficiency operation conserves batteries to prolong runtime
Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
DC fusing protects inverter against overload
High-impact polycarbonate housing
RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
Grounding lug properly connects the inverter system to earth ground or vehicle grounding system
Load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on.
2000W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 2000W of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high-current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs. Built-in RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
OPTIONAL FEATURES: Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shut off or turn on inverter power in response to loads of any level. Ignition Switch Control Jack connects inverter to vehicle ignition system to automatically control inverter. Inverter ON/OFF Relay Jack connects to a user-supplied on/off indicator for remote visual status of the operation of the inverter.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 400a should be positioned no more than 18" from the PV2000FC's battery in the positive line.
Requires 12V DC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hard wire installation with 400A battery system fusing is recommended
Features:
Allows users to run large, motorized AC appliances from any 12V battery or automotive DC system
Converts 12V DC battery power to 120V AC power
2000W continuous output power
Peak surge output: OverPower (up to 1 hour) 3000W, Double-Boost (up to 10 seconds) 4000W
2 x NEMA 5-15/20R outlets; DC input terminals for 12V battery connection
Frequency control for operating stability
High-efficiency operation conserves batteries to prolong runtime
Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
DC fusing protects inverter against overload
High-impact polycarbonate housing
RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
Grounding lug properly connects the inverter system to earth ground or vehicle grounding system
Load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on.
(Adobe Reader required to read datasheet)
