Tripplite PV1000HF Inverter 1000WATT 12VDC in, 120VAC Out 3x 15AMP Outlets
Tripplite PV1000HF Inverter 1000WATT 12VDC in, 120VAC Out 3x 15AMP Outlets
This Item is Available by SPECIAL ORDER
SKU: B&E Part Number: PV1000HF
Regular price
$548.77 CAD /Each
Regular price
/Each
Sale price
$548.77 CAD
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0
Status: Available to Order
B&E Calgary: 0
B&E Saskatoon: 0
Status: Available to Order
Conditions Apply
Quantity
Couldn't load pickup availability
Product Description
This product is not a normally stocked item - special order , please inquire to get an estimated lead time
1000W powerverter compact inverter for trucks with 4 Outlets - 12V DC input / 120V AC output;
4 outlets / 1000 watts continuous output / 2000 watts peak output (instantaneous / momentary)
Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
Requires 12V DC input source capable of delivering 100A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 175A battery system fusing is recommended.

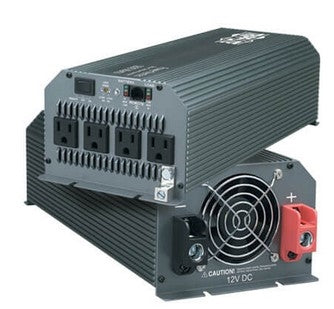

Image for illustrative purpose only - front and rear view
Features:
Allows users to run AC appliances from any properly-sized 12V battery or automotive DC system
Converts 12V DC battery power to 120V AC power
1000 watts continuous output power; 2000 watts peak output power (instantaneous)
Compact, lightweight design with all-metal housing
Remote control jack provides optional remote monitoring and control when used with optional remote module (APSRM4, sold separately)
Low battery alarm with auto-shutoff prevents deep battery discharge
High-efficiency operation conserves batteries to prolong run time
Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
Operating mode switch controls inverter operation
Battery Charge Conservation Dial conserves battery power by setting the load-level at which the inverter automatically shuts off
Cooling fan regulates internal temperature and prolongs service life
Mounting flanges provide safe, fixed installation
Grounding lug connects to vehicle ground
Grooved cooling surface provides additional surface area for more efficient cooling
1000W powerverter compact inverter for trucks with 4 Outlets - 12V DC input / 120V AC output;
4 outlets / 1000 watts continuous output / 2000 watts peak output (instantaneous / momentary)
Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
Requires 12V DC input source capable of delivering 100A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 175A battery system fusing is recommended.
Image for illustrative purpose only - front and rear view
Features:
Allows users to run AC appliances from any properly-sized 12V battery or automotive DC system
Converts 12V DC battery power to 120V AC power
1000 watts continuous output power; 2000 watts peak output power (instantaneous)
Compact, lightweight design with all-metal housing
Remote control jack provides optional remote monitoring and control when used with optional remote module (APSRM4, sold separately)
Low battery alarm with auto-shutoff prevents deep battery discharge
High-efficiency operation conserves batteries to prolong run time
Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
Operating mode switch controls inverter operation
Battery Charge Conservation Dial conserves battery power by setting the load-level at which the inverter automatically shuts off
Cooling fan regulates internal temperature and prolongs service life
Mounting flanges provide safe, fixed installation
Grounding lug connects to vehicle ground
Grooved cooling surface provides additional surface area for more efficient cooling
