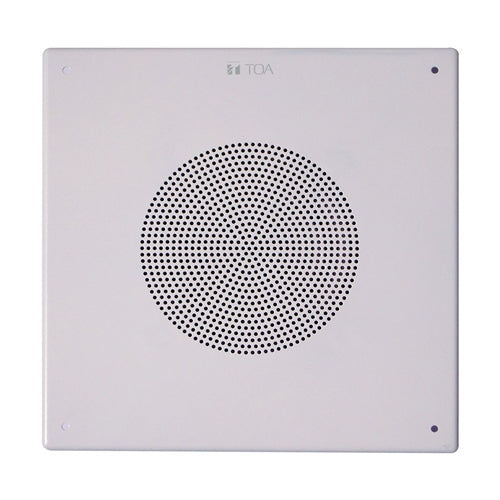

TOA PC-580S Square Ceiling Speaker, 10W 25V/70V, Ceiling Mount 8" Speaker

TOA's PC-580S is designed to fill the need for a high-performance, cost effective ceiling speaker for use in general paging and back ground music requirements. The PC-580S can easily be installed into retrofit projects.

• 8" in-ceiling speaker for high-quality paging applications
• Cost effective design
• 25V & 70V transformer taps up to 5W
• Fits standard ceiling-speaker template
• Unique "monocoque" design provides better structural integrity
• Optional Q-BB-580S or Q-BB-580W back-box

Rated Input 5W ( 70.7 V line and 25 V line)
Rated Impedance 70.7 V line: 1 kΩ (5 W), 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W) 25 V line: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)
Sensitivity (1W, 1m) 97 dB ( 1 W, 1 m)
Frequency Response 50 Hz - 16.5 kHz
Speaker Component 200 mm ( 8") Dual cone-type
Mounting Hole ø228.6±3 mm ( 9" ±0.12")
Speaker Mounting Method Mounting screw M5 X 38
Connected Cable Solid wire: ø0.8 - ø1.6 (AWG 20-12)
Connection Push wire connection ( Bridging terminal-2 branch type)
Operating Temperature -10 ·c to +50 ·c (14 'F to 122 'F)
Finish Panel: Steel plate, white, paint Grille: Steel plate, white
Dimensions 318 X 318 X 87 (D) mm (12.52" X 12.52" X 3.43")
Weight 1.90 kg (4.19 lbs)

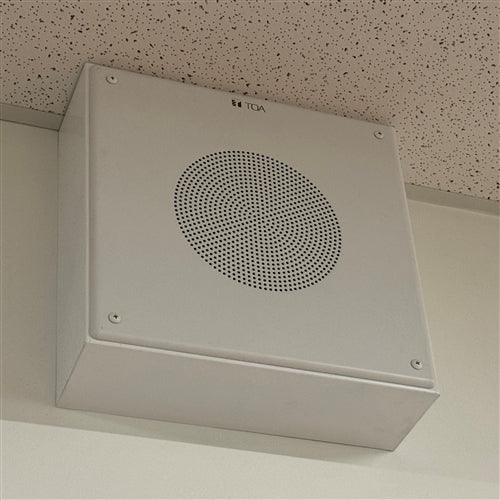

Optional Accessories Flush mount back box: Q-BB-580S Surface mount back box: Q-BB-580W
