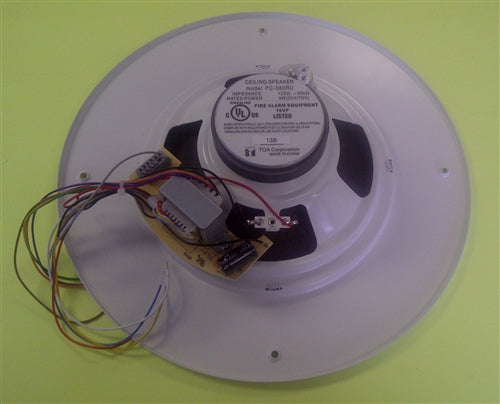

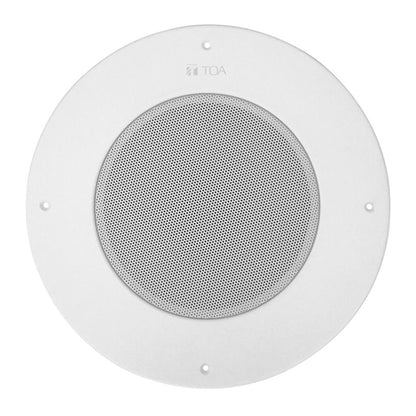

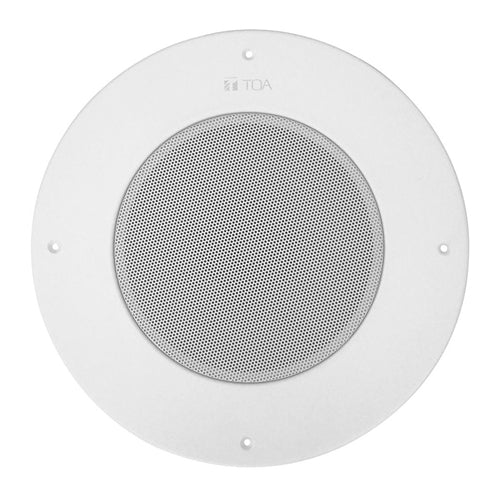

TOA PC-580RU 10W 25V/70V Ceiling Mount Speaker, Round , HY-BC580U Back Box Required/Optional

The PC-580RU is designed to fill the need for a high-performance, cost effective ceiling speaker for use in Mass Notification Systems, Voice Evacuation, Emergency Paging, and everyday Paging and Background Music requirements."ˆThe PC-580RU speaker meets ULC S541, UL 1480 UUMW (Fire Alarm Signaling) and UL 2043 (use in air handling spaces) standards when using the HY-BC580U Back Can.

• 8" in-ceiling speaker for high-quality paging applications
• Cost effective design
• 25V & 70V transformer taps up to 5W
• Fits standard ceiling-speaker template
• ULC S541, UL 1480 UUMW and UL 2043 standards
• Unique "monocoque" design provides better structural integrity
• Optional UL-rated HY-BC580U

Rated Input 5W ( 70.7 V line and 25 V line)
Rated Impedance 70.7 V line: 1 kΩ (5 W), 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W) 25 V line: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)
Sensitivity (1W, 1m) 97 dB ( 1 W, 1 m)
Frequency Response 50 Hz - 16.5 kHz
Speaker Component 200 mm ( 8") Dual cone-type
Mounting Hole ø228.6±3 mm ( 9" ±0.12")
Speaker Mounting Method Mounting screw M5 X 38
Connected Cable Solid wire: ø0.8 - ø1.6 (AWG 20-12)
Connection Push wire connection ( Bridging terminal-2 branch type)
Operating Temperature -10 ·c to +50 ·c (14 'F to 122 'F)
Finish Panel: Steel plate, white, paint Grille: Steel plate, white
Dimensions ø324 x 90 (D) mm (12.76" x 3.54")
Weight 1.60 kg (3.53 lbs)
Optional Accessories HY-BC580U Back can (sold separately) (for other installation): BB-580 Mount rail: Q-HY-TB2
Other Feature ULC S541, UL 1480 UUMW and UL 2043 when used with HY-BC580U
