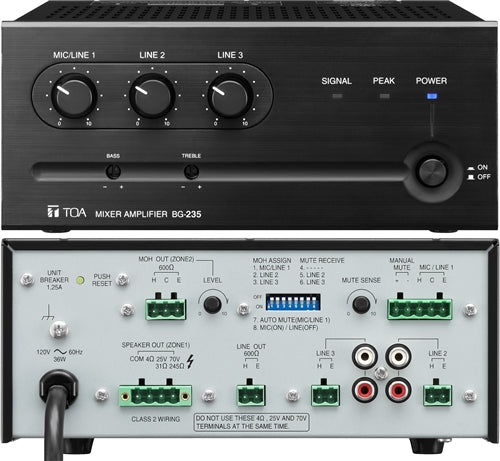

TOA BG-235 Cu 35W Three Inputs Mixer / Amplifier, One Mic, Two Line Inputs Moh Output, 4 Ohm, 25V, 70V

The BG-235 is a 35 W three-input mixer amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms, and is equipped with the MOH OUT that permits 2-channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35 W) or BA-260 (60 W).

• All inputs/ outputs have removable terminal blocks for quick and easy installation.
• Rear panel-mounted DIP switches allow easy settings.
• 3 line inputs, 1 is mic/line switchable, while 2 and 3 are equipped with RCA pin jacks.
• Recessed tamper-proof bass and treble controls preserve system settings.
• Provides auto/manual mute function with adjustable muting sensitivity.
• 2-channel broadcast system capability together with zone 2 expansion capability in conjunction with BA-200 Series.
• Any of the 3 inputs assignable to MOH/ZONE 2 out

Power Source
120 V AC, 60 Hz

Rated Output
35 W

Power Consumption
90 W (rated output), 55 W (based on cULus standards)

Frequency Response
50 Hz - 20 kHz

Total Harmonic Distortion
0.5 % or less, at 1 kHz, rated output

Signal to Noise Ratio
Mic/Line 1: 60 dB or more, Line 2, 3: 80 dB or more
(Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)

Input
Mic: -60 dB*/ Line 1: -10 dB*
Mic/Line 1 selectable, 600 Ω, electronically balanced, removable terminal block
Line 2, 3: -10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack

Output
Speaker: 4 Ω, 25 V (18 Ω) and 70 V (140 Ω),
balanced, removable terminal block
MOH: 0 dB*, 600 Ω, balanced, removable terminal block
Line: 0 dB*, 600 Ω, unbalanced, removable terminal block

Output Regulation
2 dB or less, no load to full load (1 kHz)

Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz

Muting
Manual mute/Automatic mute

Control
Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control,
Bass tone control, Treble tone control, MOH out gain control,
Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1)
Mic/Line 1 selector switch, Mute receive switch (Line 2, 3),
MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch

Indicator
Power LED, Signal LED, Peak LED

Operating Temperature
0 ℃ to +35 ℃ (32 ℉ to 95 ℉)

Operating Humidity
35 % to 80 %RH (no condensation)

Finish
Panel: ABS resin, black
Case: Steel plate, black, paint

Dimensions
210 (W) x 94.3 (H) x 265 (D) mm (8.27 x 3.71" x 10.43")

Weight
4 kg (8.82 lb)

Included Accessories
Volume control cover: YA-920...3
Removable terminal plug (2 pins)...3, Removable terminal plug (3 pins)...1
Removable terminal plug (4 pins)...1, Removable terminal plug (5 pins)...1
