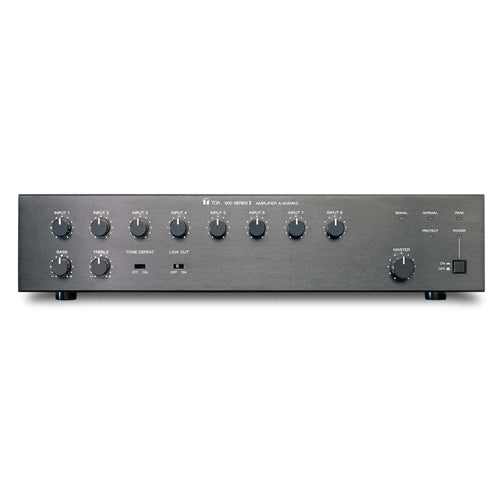

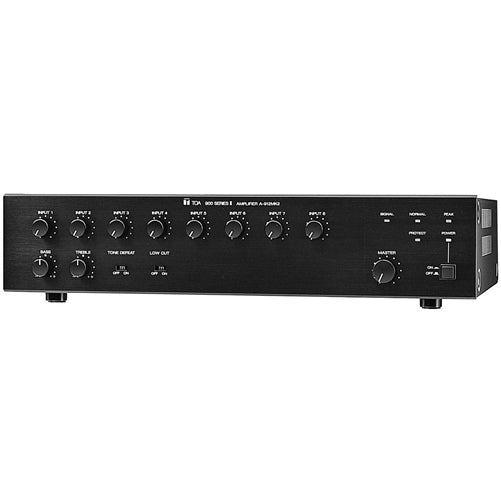

TOA A-912MK2 8-CHANNEL Mixer Power Amplifier 120 Watts

TOA A-912MK2 8-CHANNEL Mixer Power Amplifier 120 Watts

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

*All special orders are non-cancellable and non-returnable.

B&E Part Number:  A912MKII

$1,151.43 CAD /Each
/Each $1,151.43 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

The A-912MK2 Mixer Power Amplifier controls and mixes up to eight independent input signals.The Mixer Power Amplifier delivers up to 120 watts of output power.Optional plug-in modules are available for use with mixer power amplifier to provide versatility for a wide range of operating applications.

Technical Info


Type
  • 8-channel mixer power amplifier
Power Source
  • AC mains, 120 V, 60 Hz
Power Consumption
  • 180 W
Output Power
  • 120 W RMS
Power Bandwidth
  • (D) 20 Hz - 20 kHz, 0.5 % THD, (T) 50 Hz - 20 kHz, 0.5 % THD
Frequency Response
  • (D) 20 Hz - 20 kHz, ±1 dB
  • (T) 20 Hz - 15 kHz, ±1 dB, (T) 20 Hz - 20 kHz, +1 dB, -3 dB
Total Harmonic Distortion
  • 0.02 % at 1 kHz, rated output
Input
  • Eight Input Ports : Each port accepts any input modules.
  • One Bridging Input/Output
Input Sensitivity/Impedance
  • Input Port #1 to #8 : 100 mV/10 kΩ
  • Bridging Input/Output : 100 mV/3.3 kΩ
Preamp OUT / Power Amp IN
  • 1000 mV into 600 Ω/1000 mV, 10 kΩ
Outputs (T)=Transformer, (D)=Direct
  • Main (T) : 8 Ω, 25 and 70 volts, balanced, Main (D) : 4 Ω, unbalanced
  • Aux : 10 kΩ, 1 V
Output Regulation (1kHz)
  • (D) Less than 0.5 dB, no load to full load
  • (T) Less than 1.0 dB, no load to full load
Signal to Noise Ratio
  • Master volume min : 90 dB
  • Master volume max : 77 dB
  • Power amplifier only : 105 dB
Tone Control
  • Bass : ±10 dB at 100 Hz, Treble : ±10 dB at 10 kHz
Control
  • 8 Input gain control 1 Master gain control 1 Bass control
  • 1 Treble control 1 Power ON/OFF switch 1 Tone defeat switch
  • 1 Low-Cut switch (60 Hz, 6 dB/octave)
Indicator
  • 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
Protection
  • Self-protection, with AC fuse (inside)

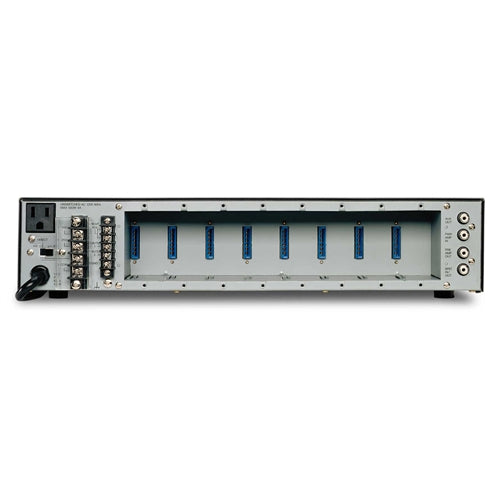

Connector
  • Input No.1 to No.8 : Card-edge connector
  • Bridging, Mixer preamp. output, Power amp. input, Aux output : RCA phono jack
  • Output : Screw-terminal strip
  • Mute, Remote VR : Screw-terminal strip
  • AC outlet : 3-pin grounding type
  • AC power cord/plug : SJT, 3-prong type
Operating Temperature
  • -10°C to +60°C (12°F to 140°F)
Finish
  • Black
Dimensions
  • 420 (W) x 99.1 (H) x 358 (D) mm (16.54" x 3.9" x 14.09")
Weight
  • 12.7 kg (28 lb)
Included Accessories
  • Volume control cover (YA-920)......4
Optional Accessories
  • Rack mounting bracket (MB-25B)
