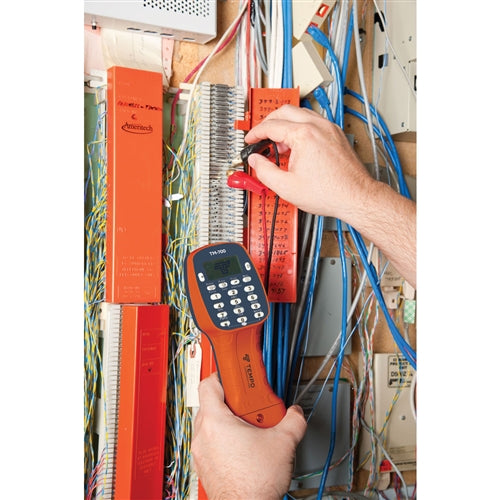

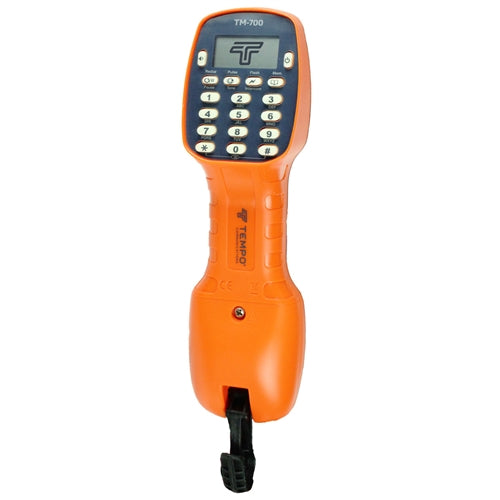

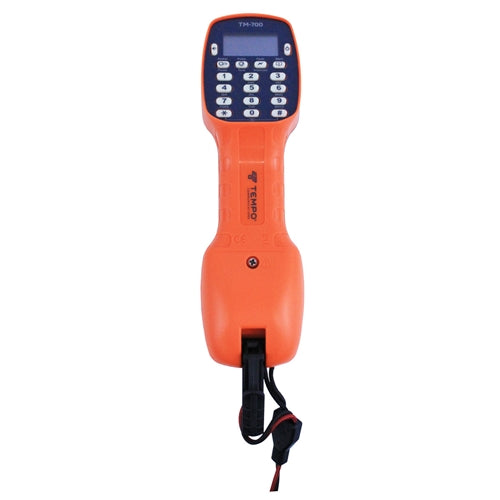

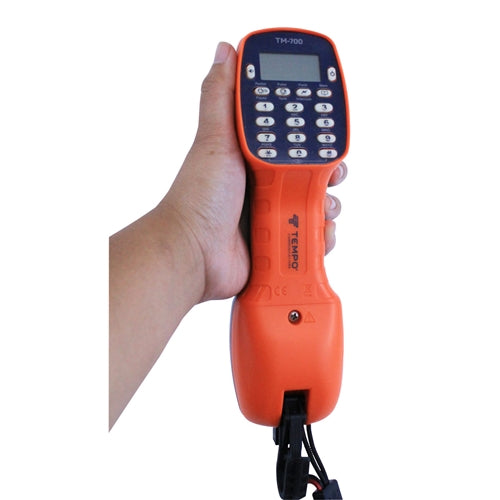

Tempo TM-700 Tele-Mate Telephone Line Tester Butt Set, Line Powered Line Voltage & Current Display *2x 'AA' Required*

Telephone butt set (Telemate 700) DSL compatible Line voltage and current display. DTMF digit detection. Tracing tone feature.
Two AA batteries required for display - not included
Brand name (s) : Tempo Communications

Features:
- LCD (96 x 48 pixels, 5 lines) displays the following: Caller ID (name and number) and Call Waiting
- Dialed number
- Over-voltage conditions
- Phone status (monitor, on hook etc.)
- Line Voltage: 110 Vdc max
- Loop Current: 125 mA max
- Ring Frequency: 15-70 Hz. High impedance monitor enables use on DSL line.
- Ergonomic shape.
- 32 digit memories.
- 10 x speed dial memories plus ten "last number redial" stores.
- Over voltage and over current protection and warning.
- Tone and pulse dialing for versatility.
- Flash key for timed-break recall.
- Pause which can be stored.
- Headset included for hands-free operation (HS-001).
- RJ11 socked and anchorage for strain relieved cords.
- Cordset with large "angled nose with bed-of-nails and spike" plus RJ11 plug.

Application : Test Telephone with High-impedance monitor, LCD, Smart Intercom, Calling Line ID, Pair tracing toner, DTMF decoding, Multiple last-number redial and ten speed-dial memories

DC Voltage : TNV-3 working, 500 V peak, 1500 V TRANSIENT
Dimensions : 9.25"/235mm length X 2.5"/64mm width X 3.25"/83mm height
Leakage : > 10 M ohms
Loop Current : < 10 mA < I < 125 mA
Replacement Part : Replaces PE830, Spares CS-01,CS-02, CS-03, CS-04, CS-05, CS-06, CS-07, HS-001
Standard : TIA/EIA-470-B and ETSI

Storage temperature : -10 C to +70 C, <95% humidity
Operating temperature: 0 C to +50 C, < 90 % humidity (no condensation)

Sub Brand : Tele-Mate
Type : Tele-Mate Pro
Voltage Measurement : 110 V dc max
