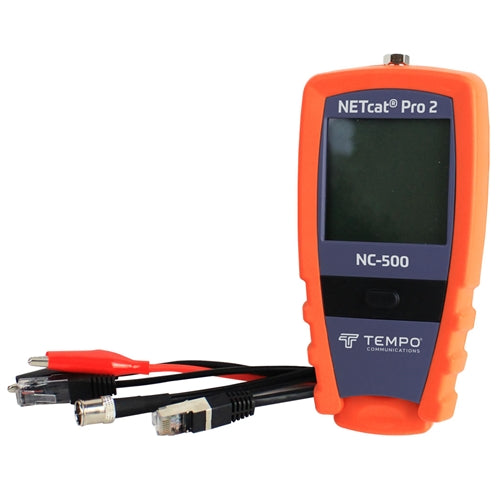

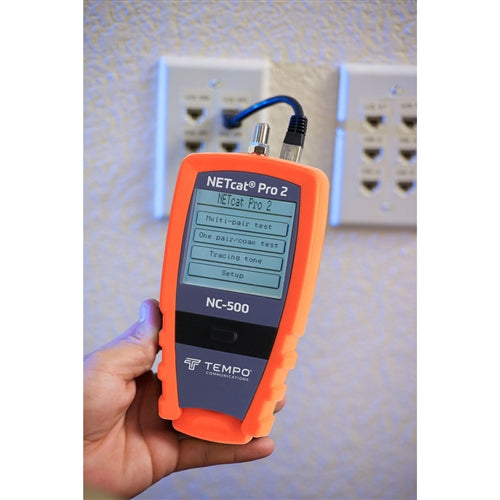

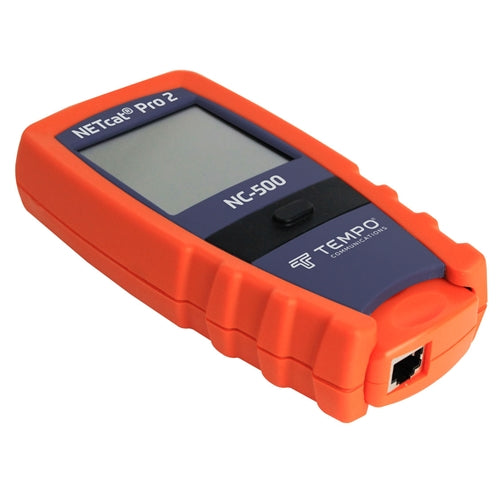

Tempo NC-500 Netcat PRO2 Digital VDV Wiring Troubleshooter /Tester ** Power Over Ethernet PoE Detection **

NETcat PRO voice / data (Cat 5e/Cat 6) / video tester
For a POE tester see TPS100C
One 9 volt battery required - not included
Brand name(s) : Tempo Communications

Features:
- Tst and troubleshoot telephone, data and coax wiring
- NETcat Pro 2 New Features:-
- Gigabit device capability detection (still detects 10 baseT and 100 baseT too)
- Cable type, velocity of propagation library, user editable
- Power over Ethernet (PoE) detection
- Memo pad
- Detect split pairs, short circuits, broken and crossed wires
- Step TDR technology shows length to open or short of all pairs
- Test shielded twisted-pair (STP), unshielded twisted-pair (UTP) & coaxial cables
- Test patch cords and remote jacks
- Touch-screen control, included stylus slots into main unit
- Large icons ensure easy use with your finger too
- Large 3" / 76mm backlit high-contrast (user adjustable) monochrome display is highly visible in dark or brightly lit areas
- Remote test and ID unit stores in base of main unit
- Can identify up to 8 remote test ID units. 7 extra available in NC-510 accessory kit (*Special order*) along with carrying case
- Tone generator with four selectable precision frequency tones, compatible with Greenlee advanced digital signal processing probes
- Operates on single 9V battery with low battery indication
NOT FOR USE ON LIVE ELECTRICAL CIRCUITS

Accessory : NC-510 NETcat Pro 2 Accessory Kit W/Carry Case
Accuracy to Open / Short : Plus Or Minus 4 PCT Or 2.000 FT (0.600 MR) Whichever Is Greater
Application : To Test And Troubleshoot Telephone, Data And Coax Wiring
Backlight : White LED
Battery : 9 V Alkaline Battery (PP3)
Buttons : LCD Touch-Screen, Single Momentary Contact Push Button
Depth : 6.70"
Display LCD : Dot Pixels: 128 X 128 Dots

Includes :
- Netcat Pro 2 Main Unit With Stylus
- Removable Remote Jack And Patch Lead Test And Id Unit
- Twisted-Pair (Modular Rj45), Coax (F) And Alligator Clip Test Cords
- 9V Alkaline Battery

Interface Connections : RJ45 Shielded Jacks F-Type Threaded Female Coaxial Connectors
Length : 3.30"
Remote Identifier : 2000.000 FT
Resolution : 1.000 FT (0.300 MR)

Storage : -20 To 70 degrees C
Operating Temperature : 0 - 50 degrees C
Sub Brand : NETcat
TDR Calibration :
User Selectable Based On A Known Cable Length
40 PCT To 100 PCT In Steps Of 1 PCT
TDR Range : 0 - 2000 FT
Type : 2 Digital VDV Wiring
Weight : 0.450 LB (200.000 GM)
Width : 1.400"
