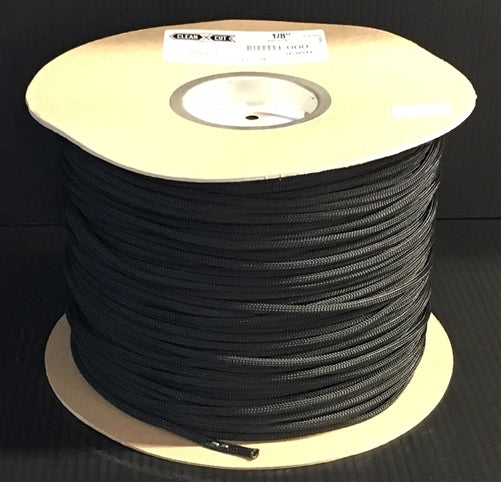

Techflex CCP0.13 Clean Cut 1/8" Black Fray-Resistant Expandable PET Braided Sleeving (305M = Full Roll)

Sold by the meter

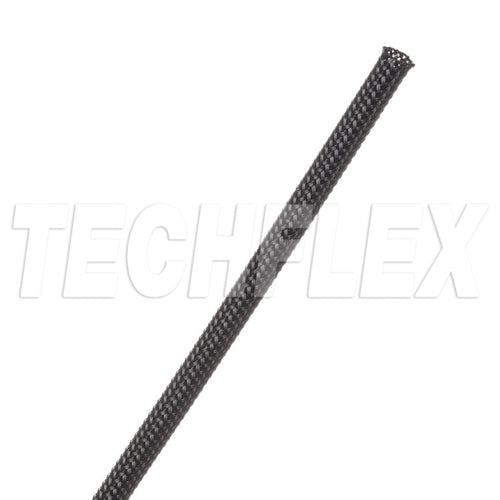

1/8 " clean cut expandable tubing
Expansion Range : Minimum : 1/8" to Maximum : 1/4"

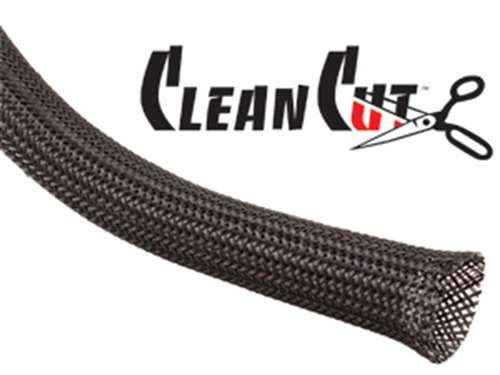

By adjusting the physical characteristics of the polyethylene terepthalate filaments, the engineers at Techflex have produced a product with the same specifications as our PET sleeving with the unique advantage of being able to cut the material with ordinary scissors and still maintain an extraordinarily fray-resistant end without the addition of chemical binders or adhesives. Flexo Clean Cut is ideal for field installers and other situations where access to a hot knife is impossible. Clean Cut's fray resistant properties allows frequent expansion of the cut end without unraveling. When cut with a hot knife, Clean Cut produces a clean, smooth and virtually frayless end. Clean Cut is braided for maximum coverage while still allowing enough expansion for easy installation over plugs and connectors.
Brand name(s) : Techflex

Features:
Temperature range : -94f (-70c) to 257f (125c)
Melt temperature : 482f (250c)

Physical Properties :
Monofilament Thickness (ASTM D-204) : .008
Flammability Rating : UL-94
Recommended Cutting : Hot Knife/Scissor
Wall Thickness : .024
Tensile Strength - Yarn (ASTM D-2265) lbs. : 6
Abrasion Resistance : Medium
Specific Gravity 1.38
Moisture Absorption % (ASTM D-570) : .1 - .2
Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .16
Smoke D-Max (ASTM E-662) : 56
Outgassing : Medium
Oxygen Index (ASTM D-2863) : 21
Operating Temperatures
Minimum Continuous : -94°F/-70°C
Maximum Continuous (MIL-I-23053) : 257°F/125°C
Melt (ASTM D-2117) : 482°F/250°C
