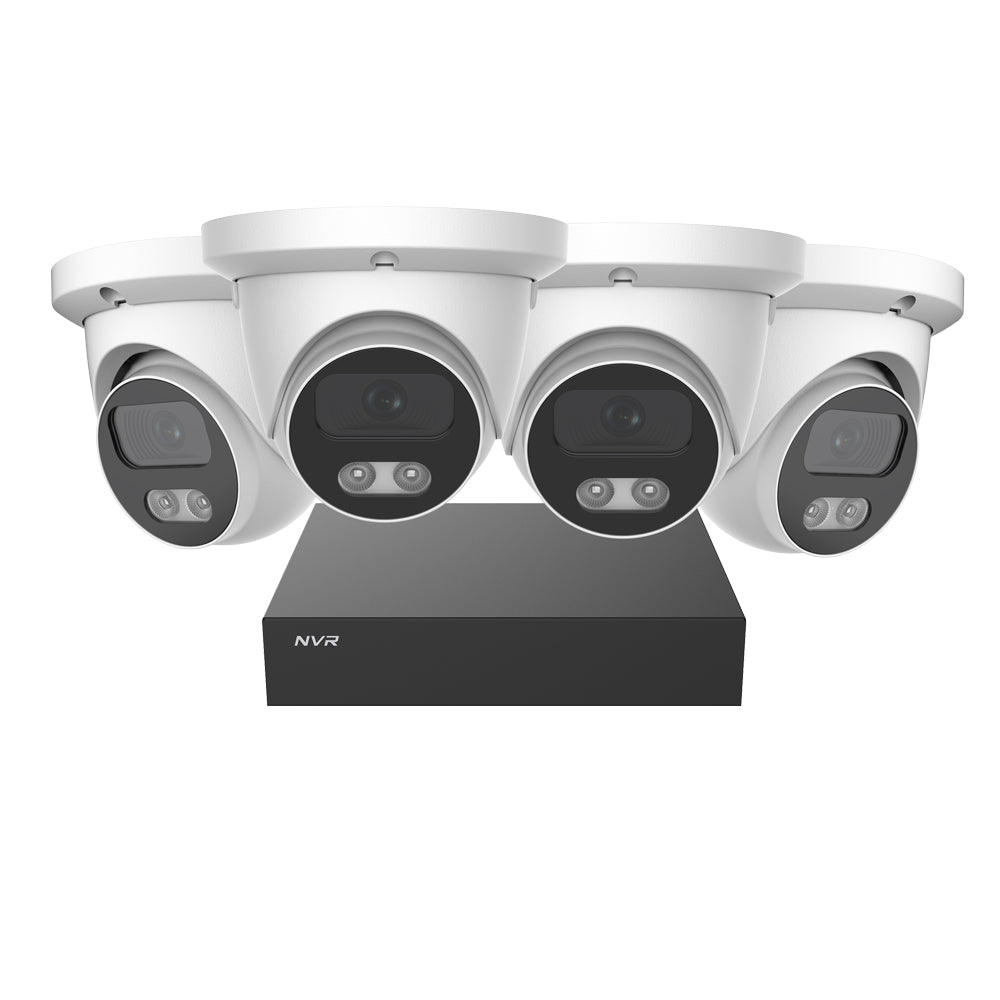

Syncview SV-IPKIT8MPDL-8CH-4-WH IP Box Kit with 4 x 8MP White Turret Cameras, and 8CH 4K NVR

Syncview SV-IPKIT8MPDL-8CH-4-WH IP Box Kit with 4 x 8MP White Turret Cameras, and 8CH 4K NVR

B&E Part Number:  IPKIT8MPDL-8C4W

$780.00 CAD /Kit
/Kit $780.00 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

Feature / Specification Details
Camera Specifications (SV-IPKIT8MPDL-8CH-4-WH)
Image Sensor 1/2.8″ SONY Starvis Back-illuminated CMOS sensor
Resolution & Pixels 8MP (3864 × 2192)
Video Compression H.264 / H.264+ / H.265 / H.265+
Audio Compression G711A/U, AAC, MP2L2
TV System PAL / NTSC
Minimum Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with white light; B/W: 0 Lux with IR
S/N Ratio 60dB
Lens & FOV 2.8 mm (Horizontal FOV 96°, Vertical FOV 52°, Diagonal FOV 114°) or 4 mm (Horizontal FOV 84°, Vertical FOV 48°, Diagonal FOV 97°)
Aperture F1.6
Night Vision IR: 2 PCS (up to 40m), Warm Light: 2 PCS (up to 30m)
Network & Protocols RJ-45 (10/100Base-T), TCP/IP, IPv4/v6, HTTP, HTTPS, DHCP, RTSP, ONVIF (Profile S/T/G/M), P2P
PoE Support Internal, Supports IEEE 802.3af
Main Stream Resolution 3840×2160 @ 25fps, 2560×1440 @ 25fps, 1920×1080 @ 25fps
AI Functions Intrusion, Line Crossing, Enter/Leave Area, Loitering, People Gathering, Motion (Human/Vehicle), Face Detection, Illegal Parking, License Plate Detection, Heat Map
Interface & Storage Built-in Mic & Speaker, Alarm I/O, MicroSD Card Slot (External, Max 512GB)
General (Camera) Metal Housing, IP67 Weatherproof, -30°C ~ +60°C Operating Temp, DC12V / 707g / Ø126.8×107.2mm
NVR Specifications (SV-NVR4K-9CH8P)
Operating System Embedded Linux (Dual Cortex A53 Processor)
Video Input 9 Channels (Supports up to 12MP/8MP/5MP/4MP/1080P)
Display Output 1× HD Output (Up to 4K / 3840×2160)
Recording Resolution & Rate Up to 12MP / 8MP @ 25/30fps per channel; H.265 / H.264 support
Playback Capability 1CH 12MP@30fps, 1CH 8MP@30fps, 4CH 4MP@30fps, 9CH 1080P@30fps
Network & Bandwidth 1× RJ45 10/100M Port; Incoming/Outgoing Bandwidth: 80Mbps / 80Mbps
PoE Ports (NVR) 8 independent 100Mbps PoE ports (Plug & Play, up to 200m extend mode, Total 45W)
Storage Capacity 1 SATA Hard Disk Interface (Supports up to 8TB capacity)
General (NVR) DC48V Power Supply, 2× USB 2.0, Dimensions: 200×175×40mm, Weight: 0.57kg (without HDD)
