Phantom Cables SVGAMM6 Ultra-Thin Svga Cable HD15 Male to HD15 Male, CL2/FT4, 6ft

Phantom Cables SVGAMM6 Ultra-Thin Svga Cable HD15 Male to HD15 Male, CL2/FT4, 6ft

B&E Part Number:  SVGAMM6

$10.80 CAD /Each
/Each $10.80 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 6
B&E Saskatoon: 0

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

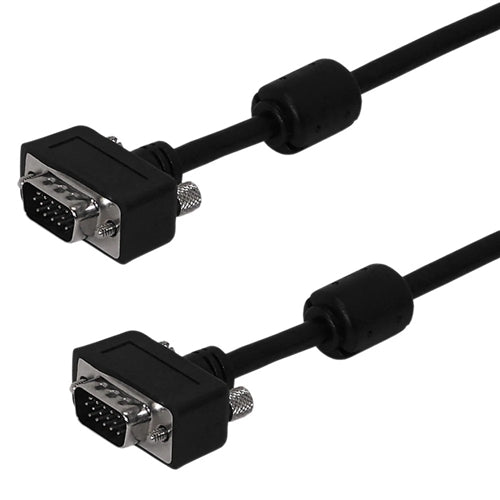

This ultra-thin SVGA cable consists of a HD15 VGA male connector on both ends. It is typically used to connect a VGA source such as a computer or laptop to a VGA input on a LCD/LED/Plasma screen.

  • Constructed of ultra thin SVGA cable designed specifically for LCD/Plasma screens
  • Slim low-profile HD15 molded connectors fit well in tight spaces
  • This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
  • Ferrite cores placed at either end of the cable further enhance the video quality

Technical Info


Physical Characteristics

  • Color Black
  • Connector Plating Nickel
  • Contact Plating Gold
  • Wire Gauge - Coax 3 - 32AWG Mini-Coax
  • Wire Gauge - Conductors 9 - 30AWG Conductors
  • Cable Diameter 5.7mm
  • Shielding AEB Braid, 100% Mylar Foil, Ferrite Cores
  • Jacket Fire Rating CL2/FT4
  • Jacket Material PVC
  • Strain Relief Molded PVC

Connector(s)

  • Connector A Ultra-thin SVGA HD15 Male
  • Connector B Ultra-thin SVGA HD15 Male

Performance

  • Impedance 75 ohm

Approvals

  • c(UL)us Approved Cable

Environmental

  • RoHS Yes
  • Reach Yes
  • Conflict Minerals Yes

Packaging Information

  • Package Quantity 1
