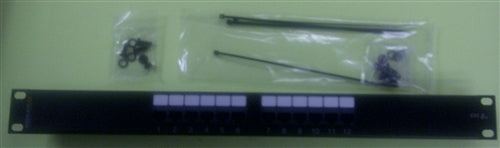

Signamax 12458MD-C5E 12 Port Loaded Cat5e Md-Series Unshielded Patch Panel, 1 RU (1U)

Category 5e Patch Panels are designed to exceed ANSI/TIA-568-C.2 component, permanent link and channel performance specifications providing usable bandwidth beyond 155 MHz. These high-density panels are available in 12- through 48-port versions and fea-ture enhanced front and rear labeling features for easy circuit identification. Category 5e panels support both T568A and T568B wiring schemes using an easy-to-read color-coded wiring label.

Panels are constructed for maximum strength and durability and feature a fully enclosed, modular design, which provides flexibility and protection of printed circuitry during termination. Rear termination is made quick and easy using a 4-pair inline 110-type connector compatible with standard multi pair impact tool to reduce installation time or single-position 110 termination tool.

Panels include an integrated cable management feature for cable routing and strain relief requirements. An optional cable management bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief.

Manufacturer part# 12458MD-C5E

Features:
- Transmission performance exceeds ANSI/TIA-568-C.2 specifications
- Integrated cable management feature for cable routing and strain relief requirements
- Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6-position plugs
- Fully enclosed, 6-port modular design, which provides flexibility and protection of printed circuitry during termination
- Rear termination is made quick and easy using a 4-pair inline 110 type connector compatible with our multi pair impact tool to reduce nstallation time or an industry standard single position 110 termination tool
- A cable management bar, which mounts easily to the back of the panel, is available for improved cable routing and strain relief
- Rated for at least 750 plug insertions providing for the highest level of system reliability
- Maximum strength and durability construction
