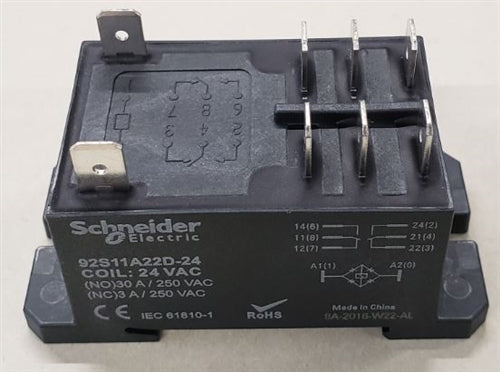

Schneider 92S11A22D-24 Power Relay 24VAC DPDT 30A-NO/3A-NC, Flange Mount Style

24vac DPDT relay, flange / screw mounted style
Brand name(s) : Schneider Electric Relays / SE Relays

Rating of contacts dependent upon how the relay is wired
Normally open or normally closed contacts are rated differently.

CAUTION important to review
(AC, resistive load) :
3 A at 277 VAC 50/60 Hz (Normally Closed Contact)
30 A at 277 VAC 50/60 Hz (Normally Open Contact)

(DC, resistive load) :
20 A at 28 V (Normally Open Contact)
3 A at 28 V (Normally Closed Contact)

Minimum Switching :
100 mA at 6 VAC/VDC (Normally Closed Contact)
500 mA at 12 VAC/VDC (Normally Open Contact)

Features:
.250" quick connect terminals
