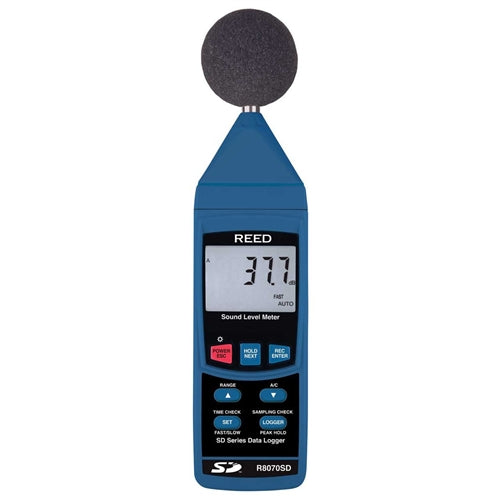

REED R8070SD Data Logging Sound Level Meter

REED R8070SD Data Logging Sound Level Meter

Real time data logger with integrated SD memory card measures/records general sound levels and meets IEC 61672-1 Type 2 standards.

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available online by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

B&E Part Number:  R8070SD

$429.00 CAD /Each
/Each $429.00 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

This R8070SD has triple range measurement and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

High accuracy of +/-1.0dB to 1kHz meets Type 2 standards

Triple range measurement (50dB dynamic range)

A & C frequency weighting

Fast & Slow time weighting

Real-time data logger with integrated SD memory card

User selectable sampling rate from 1 to 3600 seconds

Peak hold, Data hold and Min/Max hold

Easy-to-read backlit LCD display

Tripod mount for long-term monitoring

Low battery indicator and auto shut off

The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.
