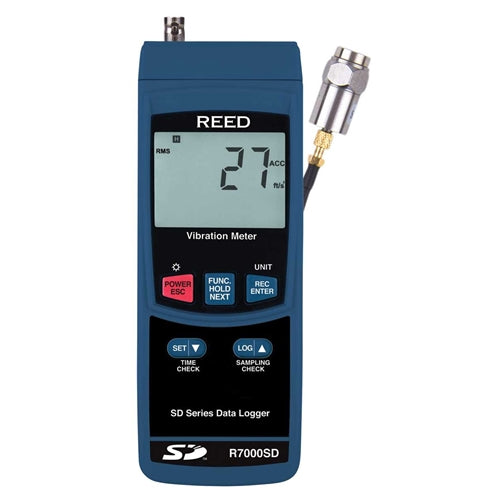

REED R7000SD Data Logging Vibration Meter

REED R7000SD Data Logging Vibration Meter

Real-time data logger with integrated SD memory card measures/records velocity and acceleration to determine vibration levels in machinery.

This Item is Available by SPECIAL ORDER

B&E Part Number:  R7000SD

$995.00 CAD /Each
/Each $995.00 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

The R7000SD measures velocity and acceleration to determine vibration levels in machinery while meeting ISO1954 standards and features RMS, Peak hold, Data hold, Max/Min functions and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features

Measures velocity and acceleration to determine vibration level

User selectable unit of measure (metric or imperial)

RMS, Peak hold, Data hold and Max/Min functions

10Hz to 1kHz frequency range

Basic accuracy of +/-5%

Real-time data logger with integrated SD memory card

User selectable sampling rate from 1 to 3600 seconds

Easy-to-read backlit LCD display

Tripod mount for long-term monitoring

Meets ISO1954 standards

Low battery indicator and auto shut off
