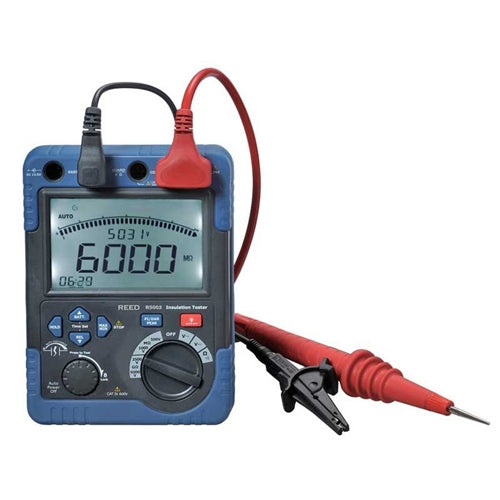

REED R5002 High Voltage Insulation Tester

REED R5002 Offers

This high voltage insulation tester is capable or testing voltages up to 5000V and measures insulation resistance up to 60GΩ. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity.

Features

Test Voltages of 500V, 1000V, 2500V, and 5000V

Measure Insulation Resistance to 60GΩ

Backlit LCD display with analog bargraph

Timer function for insulation resistance measurements (1 to 15min)

AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions

Polarization index measurement (PI)

Dielectric absorption ratio measurements (DAR)

Max/Min, Peak, Relative value and Data Hold functions

Cat. IV 600V safety rating

Low battery indicator and auto shut off
