Reed Instruments

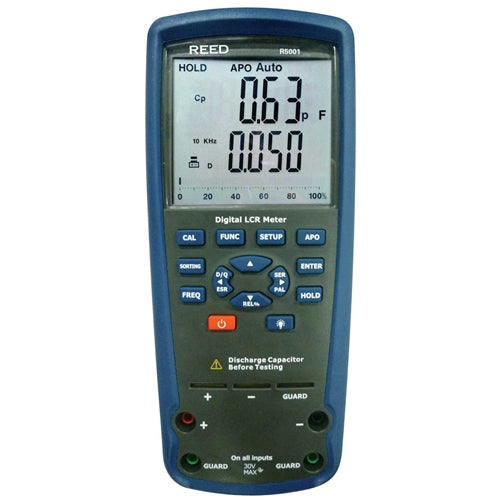

REED R5001 LCR Meter

REED R5001 LCR Meter

LCR measurements with test frequency up to 100kHz.

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available online by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

B&E Part Number:  R5001

$329.00 CAD /Each
/Each $329.00 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

REED R5001 Offers

This LCR meter measures inductance, capacitance and resistance with secondary parameters such as dissipation factor (D), quality factor (Q), phase angle (Ø) and equivalent series/parallel resistance (ESR or Rp). The R5001 features an easy-to-read LCD display with backlight, and data hold/relative functions.

Features

Measures inductance, capacitance and resistance

Autoranging for AC impedance and DE resistance measurement

Auto LCR smart check and measurement

Series/Parallel modes

Ls/Lp/Cp with D/Q/Ø/ESR parameters

Support DCR mode 200Ω to 200MΩ

High accuracy with 4 / 5 terminal Kelvin measurement

10kHz testing frequency and up to 100kHz output frequency

Backlit dual LCD display

Data hold and relative functions

Low battery indication with auto power off
