PSI Data PSI-RG6CMR-BK Black RG6 Coaxial Cable, CMR/FT4 Indoor Rated, 60% Shielded Bare Copper (305M/Box)

Sold as a box of 1000ft

RG6 indoor rated cable - CMR / FT4
RG-6 coaxial cable (18awg, 3Ghz) is used with satellite and cable television.
Brand name (s) : PSI Data

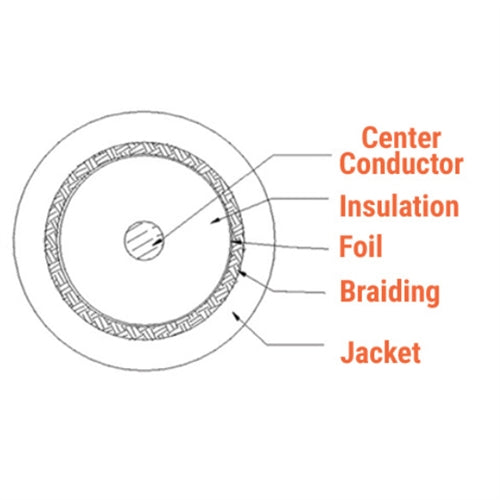

Materials:
Conductor: Copper clad steel (CCS)
Dielectric: low density cellular polyethylene
Shield: aluminum foil and copper wire braid
Jacket material: PVC (polyvinylchloride)

Technical characteristics:
Wave impedance: 75 Ohm
Conductor diameter: 1.02 mm (0.04") (18 AWG)
Dielectric diameter: 4.57 mm (0.18")
Outer jacket thickness: 0.8 mm (0.031")
Outer cable diameter: 6.9 mm (0.27")
Shield: 0.16 mm (0.006"), cover - 60% minimum, aluminum foil
Test frequency: up to 3 GHz
Voltage rating: 3000 V
Temperature range: -20°C - +80°C (-4°F - +176°F)
Weight per 1000 ft (304.8 m): 14 kg (30.9 lbs)
