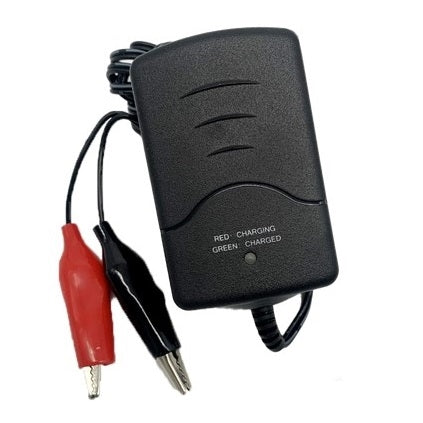

Powersonic PSC-61000ACX Dual Rate Battery Charger 6V 1000mA, for 6V Sealed Lead Acid Batteries 5AH-12AH

A-C Series "Switch-Mode" battery charger for sealed lead acid batteries "cUL" listed

Usable from 110vac - 240vac 50/60hz. A new series which operates without the use of a transformer.IC based circuitry regulates current and voltage. The circuitry automatically switches from fast to float charge when batteries are closed to being charged. Ideal for cyclic applications where recharge time is critical and timely charging is important. This charger ensures optimum performance and service life.

Features:
• Automatic, current sensing dual-rate charging for efficient, care-free and safe operation
• L.E.D.s indicate 'power on' and "FAST" and "FLOAT" charging modes
• Float mode - safe to leave battery connected to the charger indefinitely
• Protected against accidental reverse polarity connection

"A-C" Series Switch Mode Charger datasheet (Adobe Reader required to read datasheet)

Nominal Voltage : 6v
Output Voltage (Fast/Float) : 7.35v/6.75v
Output Current : 1000ma
Type Automatic : Dual Rate

Dimensions (LxWxH) : 2.24(57mm)x1.73(44mm)x3.23(82mm)
Weight : 0.30lb/0.14kg
Charger Design : Plug In Use With Batteries (Capacity) : 6v, 5-10 AH
