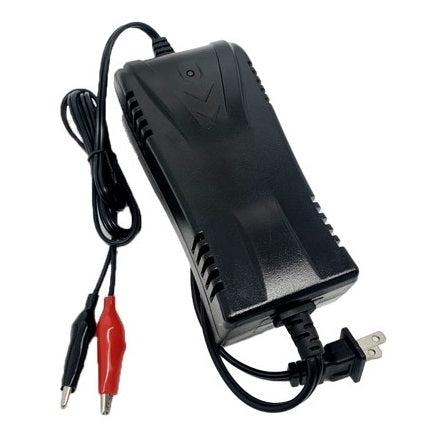

Powersonic PSC-124000ACX Dual Rate Battery Charger 12V 4000mA, for 12V Sealed Lead Acid Batteries 14H-55AH

A-C Series "Switch-Mode" battery charger for sealed lead acid batteries "cUL" listed

Usable from 110vac - 240vac 50/60hz. A new series which operates without the use of a transformer.IC based circuitry regulates current and voltage. The circuitry automatically switches from fast to float charge when batteries are closed to being charged. Ideal for cyclic applications where recharge time is critical and timely charging is important. This charger ensures optimum performance and service life.

Features:
• Automatic, current sensing dual-rate charging for efficient, care-free and safe operation
• L.E.D.s indicate 'power on' and "FAST" and "FLOAT" charging modes
• Float mode - safe to leave battery connected to the charger indefinitely
• Protected against accidental reverse polarity connection

"A-C" Series Switch Mode Charger datasheet
(Adobe Reader required to read datasheet)

Nominal Voltage : 12v
Output Voltage (Fast/Float): 14.70v/13.50v
Output Current : 10000ma

Type Automatic: Dual Rate

Dimensions (LxWxH): 5.43 (138mm) / 2.83 (72mm) / 1.65 (42mm)
Weight : 0.90lb / 0.41kg

Charger Design: Plug In Use With Batteries (Capacity): 12v, 20-40 Ah
