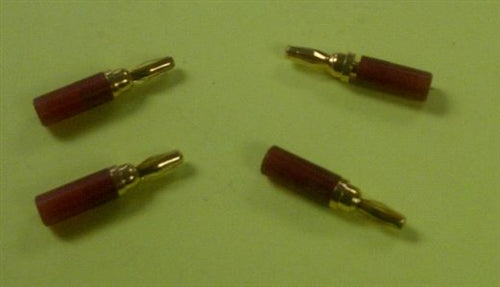

Pomona Miniature Single Red Banana Plug 3690-2 5 Amp Maximum

5 amp miniature banana plug, red

Image for illustrative purpose only. Sold as the individual piece.

Features
• Supports 20 to 22 AWG wires.
• Allows creation of custom patch cord lengths.
• Insulator unthreads to allow easy "Do-It-Yourself" wire soldering.
• Body & spring are gold plated for corrosion resistance and optimum electrical connection between plug and jack.
• Banana plug spring is Beryllium Copper for superior spring shape retention to ensure long insertion life

Material:
Insulator Cap: Nylon, Color per part number
Miniature Banana Plug:
Body - Brass, Gold Plated
Spring - Beryllium Copper, Gold Plated

Ratings:
Operating Voltage: 2500 VDC
Operating Temperature: +80°C /+176°F
Current: 5 Amperes maximum
