Pomona

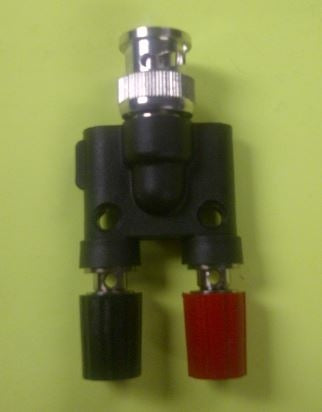

Pomona BNC M to Stackable Binding Posts 1296/P

Pomona BNC M to Stackable Binding Posts 1296/P

B&E Part Number:  1296/P

$47.52 CAD /Each
/Each $47.52 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 4
B&E Saskatoon: 3

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

BNC male to stackable binding post

Features
• Converts BNC based test instruments to double binding posts with banana jacks.
• Binding Posts can be vertically and horizontally stacked for test versatility.
• Wires, spade lugs, pin tip plugs and banana plugs can be attached by means of the insulated knurled thumb knob.
• Insulated thumb knob is captive to prevent misplacement.
• BNC features Nickel Plated, Beryllium Copper for tarnish resistance & long insertion life.
• BNC center contact is Gold Plated, Brass for low contact resistance
• BNC shell is plated for tarnish resistance

Technical Info


Material
BNC (Male): Body: Brass, Nickel Plated
Dielectric: PTFE
Center Contact: Brass, Gold Plated
Impedance: 50 Ohms
Insulation: ABS Molded to BNC (Male) and Binding

Ratings
Voltage:
Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 500 VRMS Max.
Operating Temperature: +50°C / +122°F maximum
