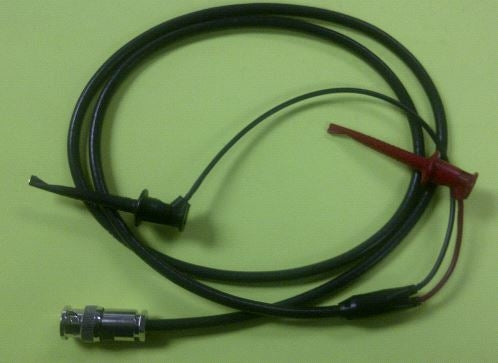

Pomona 5187-C-36 Male BNC to Two Minigrabbers 36"

36" Male BNC to two minigrabber (1 pair of red/black test clips)

Features
• Cable assembly is perfect for interfacing test instruments to discrete test points.
• BNC connector is the highest quality, field replaceable construction. The nickel plated shell resists corrosion and the gold plated center contact promotes high quality, low resistance connections in the field and the laboratory.
• Breakout wires are crimped to the cable conductors and over-molded with a flexible PVC strain relief for long service life

Material
BNC Male:
Body-Brass, Tarnish Resistant Plating,
Center Contact-Brass, Gold Plated,
Dielectric: PTFE, Impedance: 50 Ohms
Minigrabber® Test Clips:
Contact, Beryllium Copper, Gold Plated,
Insulation: Nylon,
Color: One Black/One Red
Breakout Wires: 20 AWG, 41 x 36 t.c., PVC Insulation, O.D. .087" (2,21 mm), Color Matches Grabbers
Molded Breakout: PVC, Color: Black
Cable: RG58C/U Coaxial cable, Non-contaminating PVC jacket. Impedance: 50 Ohms

Rating
Operating Voltage: 45 VRMS maximum
Operating Temperature: +50°C / +122°F
