Pomona

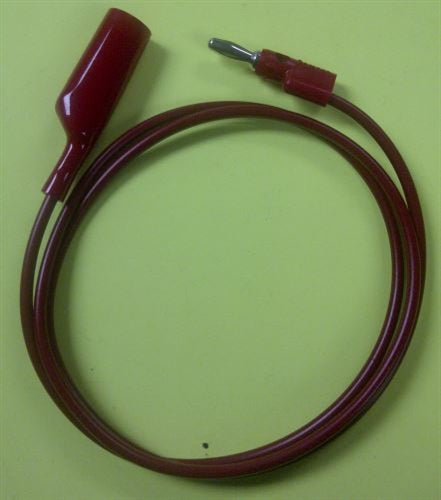

Pomona 1166-36-2 Stacking Banana Plug to Alligator Clip, 36" Red

Pomona 1166-36-2 Stacking Banana Plug to Alligator Clip, 36" Red

B&E Part Number:  1166-36-2

$16.69 CAD /Each
/Each $16.69 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 5
B&E Saskatoon: 3

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

36" (3ft) Stacking banana plug to alligator clip, red

Features
• Alligator Clip to Stacking Banana Plug Patch Cord offers quick attachment to terminals up to .300" O.D.
• The patch cord features a medium size alligator clip with a flex boot for insulation protection. The banana plug spring is Beryllium Copper for long insertion life.
• The banana plug has vertical and horizontal stacking capability.
• The wire conductor has a high number of strands for excellent wire flexibility.
• The banana plug is molded directly to the wire for added pull strength

Technical Info


Materials
Insulated Alligator:
Body: Steel, Nickel Plated
Insulator Boot: Vinyl, Color matches wire color
Wire: 18 AWG, Stranding 65 x 36 t.c., PVC
Insulated, 0.144” (3.66 mm) O.D.
Marking: Pomona 1166-XX-*

Body-Brass, Nickel Plated
Insulation: Polypropylene Molded to the Plug Body and Wire. Color Matches Color of Wire.

Ratings
Operating Voltage:
Hand-held testing: 30vac Max.
Hands Free Testing in controlled voltage environments: 150 WVDC

Current: 5 Amps

Operating Temperature: +50°C Max.
