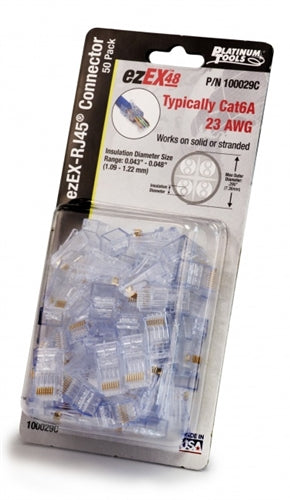

Platinum 100029C EZEX48-EZEX-RJ45 Cat6a Connector, for Solid or Stranded 23-22AWG, 50/Pack

Platinum 100029C EZEX48-EZEX-RJ45 Cat6a Connector, for Solid or Stranded 23-22AWG, 50/Pack

B&E Part Number:  100029C

$72.40 CAD /Pkg
/Pkg $72.40 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 9
B&E Saskatoon: 2

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

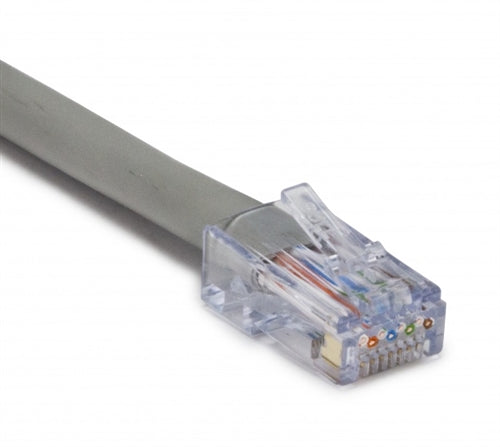

ezEX ®48 - ezEX-RJ45 ® CAT6A connector

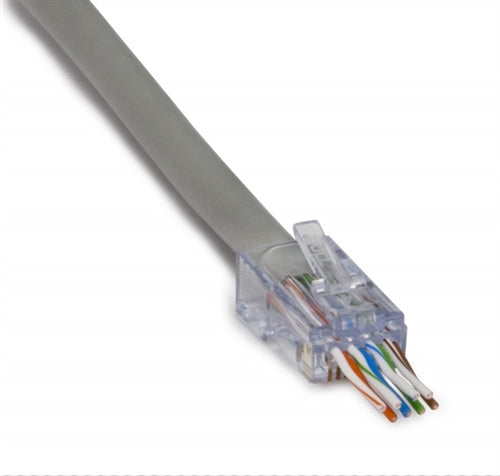

The patented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications.
Exo Crimp Tool frame & ezEX48 die required : 100062C & 100071C

Features:
Hi-Lo stagger isolates each conductor for higher performance
Simple one piece/pass through design, no bars or liners
Insulation Diameter (Conductor) Size range: .043" - .048" (1.09 -1.22mm)
Max outer diameter: .290" (7.36mm)
50 micron gold plated contacts
Solid or Stranded 23-22 AWG
TIA, TAA, RoHS, UL & FCC compliant
Typically used with Cat6A & Lg Cat6
Made in the USA
