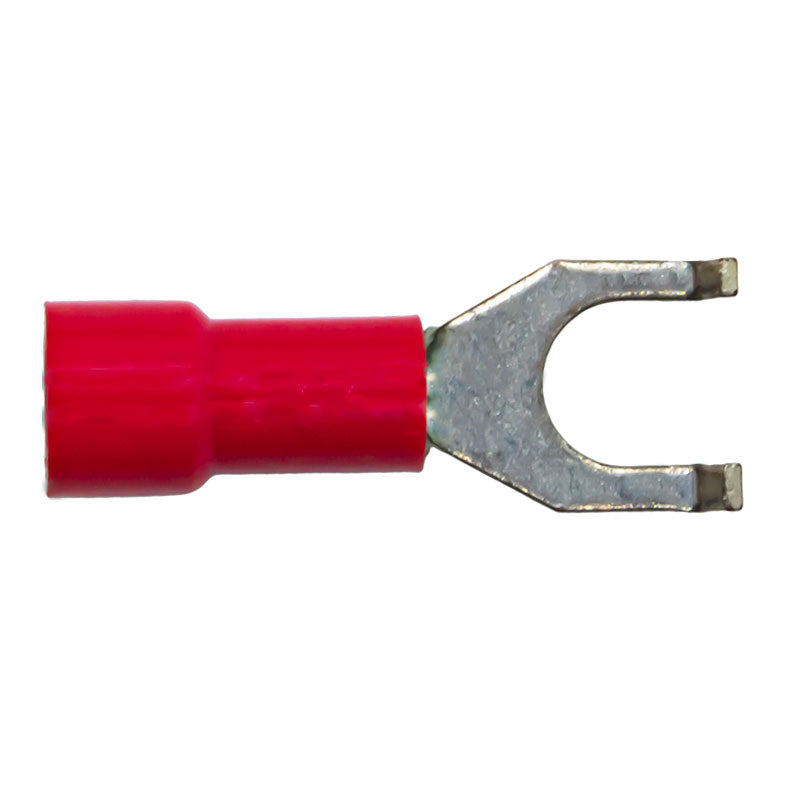

PICO 1735-15 22-18 AWG #10 Vinyl Insulated Flanged Spade Connectors, 50-Piece

Flanged Vinyl Spade Connectors, injection moulded with a funnel entry. High quality butted seam construction, pre-insulated with a polyvinyl chloride (PVC) sleeve. Insulation is colour coded to NEMA standards and flared for easy insertion of both stranded and solid wire. PVC insulation provides support for the wire to avoid flexing at the point of crimp. Flanged configuration of the tang provides a positive lock to the post and increased pull-out force resistance. The forked tongue permits convenient assembly and disassembly without complete removal of the connection screw.

• Gauge: 22-18 AWG
• Seam: Butted
• Stud: #10
• Insulation: Vinyl
• Material: Copper
