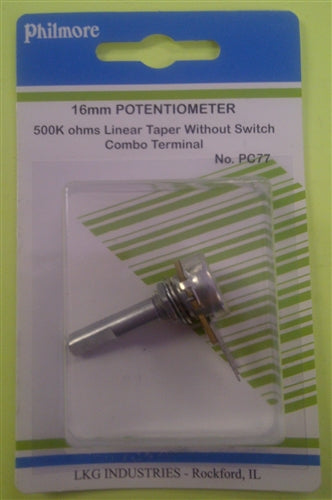

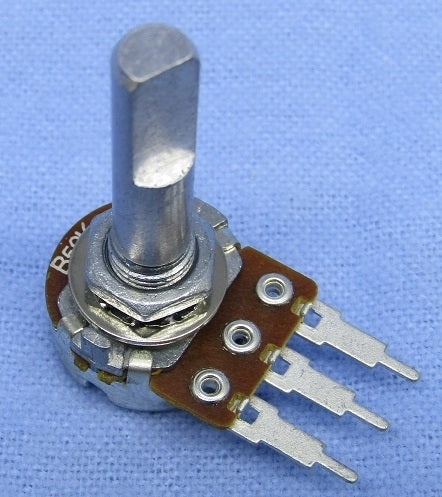

Philmore PC77 500k Ohm Linear Taper Potentiometer, No Switch, Combo Terminals
Philmore PC77 500k Ohm Linear Taper Potentiometer, No Switch, Combo Terminals
SKU: B&E Part Number: PC77
B&E Calgary: 3
B&E Saskatoon: 0
Status: In Stock
Couldn't load pickup availability

Collapsible content
Product Description
Brand name(s) : LKG, Philmore
These potentiometers are used in a lot of consumer electronics applications such as stereos, TV's, two-way radios, and many more.
Technical Info
Resistance Tolerance: 20%
Maximum Voltage:
Linear = 150V AC
Audio = 200V AC
Power Rating:
Linear = 200 mA, 200mW
Audio = 100 mA, 100mW
Switch Rating: 1.0 A @ 12V DC or 125V AC
Total Rotation: 300 degrees
Rotation life: 15,000 cycles
Bushing Diameter: 7 mm
Shaft: 30mm w/ flat 12 mm , 6mm O.D
