Philmore

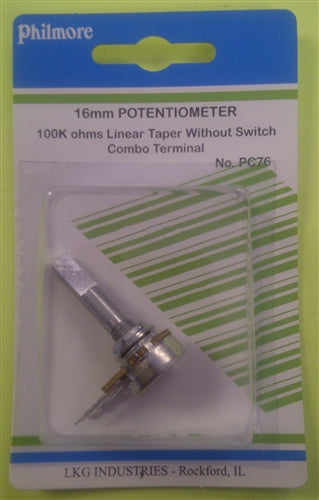

Philmore PC76 100k Ohm Linear Taper Potentiometer, No Switch, Combo Terminals

Philmore PC76 100k Ohm Linear Taper Potentiometer, No Switch, Combo Terminals

B&E Part Number:  PC76

$6.22 CAD /Each
/Each $6.22 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 6
B&E Saskatoon: 0

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

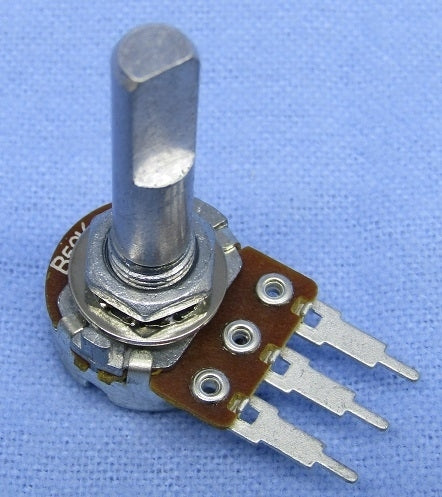

Standard Potentiometer (16 mm), 100K ohm linear taper without switch, combo terminals Compatible with 1/4" knobs (6mm/.236" shaft diameter)
Brand name(s) : LKG, Philmore

These potentiometers are used in a lot of consumer electronics applications such as stereos, TV's, two-way radios, and many more.

Technical Info


Resistance Tolerance: 20%
Maximum Voltage:
Linear = 150V AC
Audio = 200V AC
Power Rating:
Linear = 200 mA, 200mW
Audio = 100 mA, 100mW
Switch Rating: 1.0 A @ 12V DC or 125V AC
Total Rotation: 300 degrees
Rotation life: 15,000 cycles
Bushing Diameter: 7 mm
Shaft: 30mm w/ flat 12 mm , 6mm O.D
