Philmore

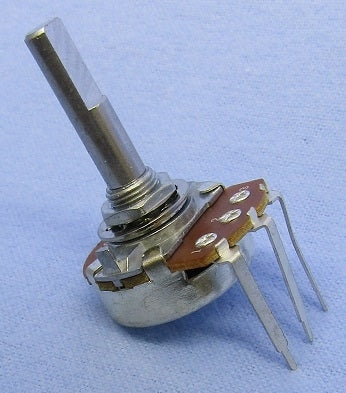

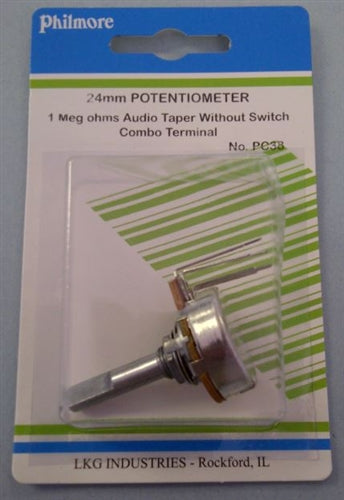

Philmore PC38 1MOhm Ohm Log / Audio Taper Potentiometer, No Switch, Combo Terminals

Philmore PC38 1MOhm Ohm Log / Audio Taper Potentiometer, No Switch, Combo Terminals

B&E Part Number:  PC38

$6.22 CAD /Each
/Each $6.22 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

Standard Potentiometer (24 mm), 1M ohm audio taper without switch, combo terminals Compatible with 1/4" knobs (6mm/.236" shaft diameter)
Brand name(s) : LKG, Philmore

These potentiometers are used in a lot of consumer electronics applications such as stereos, TV's, two-way radios, and many more.

Technical Info


Tolerance: 20%
Maximum Voltage:
Linear = 500V AC
Audio = 250V AC
Power Rating:
Linear = 500 mA, 1/2w
Audio = 250 mA, 1/4w
Switch Rating: 1.0 A @ 12V DC or 125V AC
Total Rotation: 300 degrees
Rotation life: 15,000 cycles
Bushing Diameter: 8 mm
Shaft: 30mm w/ flat 12 mm, 6mm O.D
