Phantom Cables VW-HDMI-300 2-Port HDMI 2.1 Bi-Directional Switch 8k, HDR, Dolby Vision

NOTE: This unit cannot be used as a splitter.

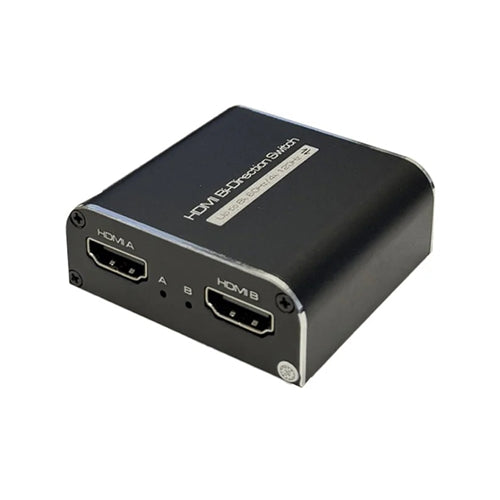

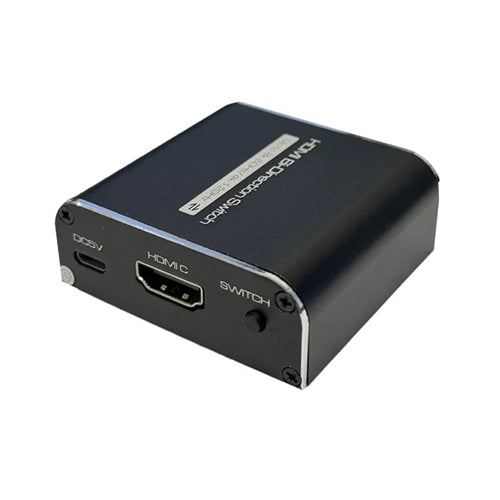

This 1x2 bi-directional HDMI 2.1 switch enables you to change from one HDMI source to one of two HDMI displays or vice versa, one of two HDMI sources to one HDMI display. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as UHD TVs, projectors or HDMI monitors. A push button on the device controls which source/monitor is being displayed. The switch performs at HDMI 2.1 resolutions - 8K at 60Hz with transmit bandwidth up to 48Gbps. It also supports HDCP 2.3 and is backward compatible.

Physical Characteristics

• Dimensions 56mm x 53mm x 20.8mm

Compatibility

• PC to Monitor Yes
• PC to TV Yes
• DVD to Monitor Yes
• DVD to TV Yes

Connector(s)

• Input/output 1 x HDMI Female
• Output/input 2 x HDMI Female

Performance

• Video Format 480P/720P/1080P/2160P@120/60/50/30/25/24 4320@60/50/30/25/24 Supports HLG/HDR/HDR10/HDR10+ and Dolby Vision
• Deep Color 8/10/12/16Bit@2160P, 8/10bit@4320
• Audio Format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM
• HDCP Compliant Yes, Supports HDCP2.2/1.4
• Transmission Bandwidth 1.2GHz Max.
• Transmission Rate 48Gbps Max.
• Max Working Current 400mA
• Working Temperature -5 ~ +40℃
• Working Humidity 5 to 85%RH (No Condensation)
• Storage Temperature -15 to 55℃
• Storage humidity 5 to 95%RH (No Condensation)

Approval

• CE Yes

Environmental

• RoHS Yes
• Packaging Information
• Included in Package 1 - HDMI Switch
• 1 - Micro USB External Power Supply

Weight: 0.19lbs
