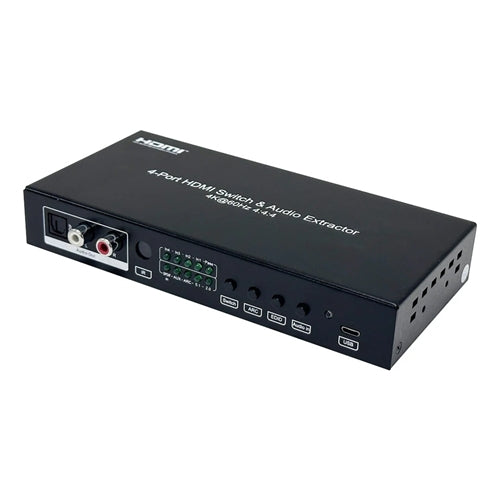

Phantom Cables VW-HDMI-202 4-Port HDMI Switch 4K x 2k@60Hz, HDMI 2.0, Yuv4:4:4, Arc Cec HDR, Ir Control

Phantom Cables VW-HDMI-202 4-Port HDMI Switch 4K x 2k@60Hz, HDMI 2.0, Yuv4:4:4, Arc Cec HDR, Ir Control

B&E Part Number:  VW-HDMI-202

$71.25 CAD /Each
/Each $71.25 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 1

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

This HDMI switch enables you to connect up to four HDMI sources to a HDMI display. It is typically allows four HDMI sources to be routed to one display with ARC & Audio extraction & Audio Mixing.

Key Feature:

  • 4 x HDMI inputs which can be switched to single HDMI output
  • 1x HDMI Output with ARC (Audio Return Channel) which can be routed from the TV to Toslink or Analog Output
  • Supports 4K UHD video (4K @60Hz 4:4:4)
  • HDCP 2.2 compliant
  • Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Control via front panel and IR (remote controller)
  • Advanced EDID management
  • 1x L/R analog & 1x Toslink audio Out which extract the Toslink (5.1ch) and/or Analog (2ch) (Note: Does not convert/decode Dolby Digital 5.1/7.1 HDMI audio source to 2-channel Stereo audio.)
  • 1x 3.5mm & 1x Toslink Audio Mixing which Mixes external AUX Analog audio (2ch) or Digital Toslink audio (5.1) to the outgoing HDMI signal (Note: HDMI audio is no longer present in the audio mixing mode. The audio stream will come from either the AUX or Toslink input.)

Technical Info


Physical Characteristics

  • Color Black

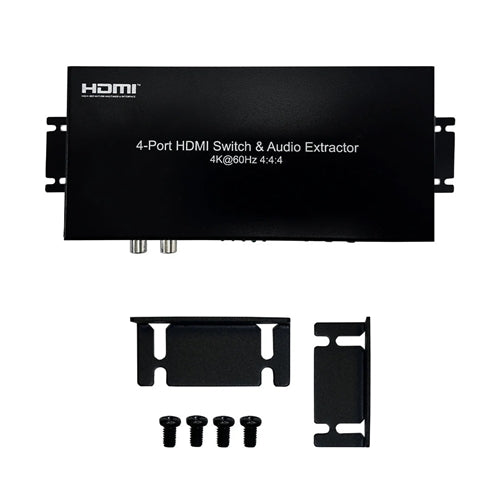

  • Housing Metal Enclosure
  • Operating Temperature -5℃ ~ +40℃
  • Operating Humidity Range 5 to 90%RH (No Condensation)

Power

  • Power supply 100-240VAC 50/60Hz input to 5VDC 1amp output
  • Barrel size 5.5mm x 2.1mm
  • Minimum power
  • (work under 480p60hz) 256mA
  • Maximum power
  • (work under 4K2K/60hz) 383mA

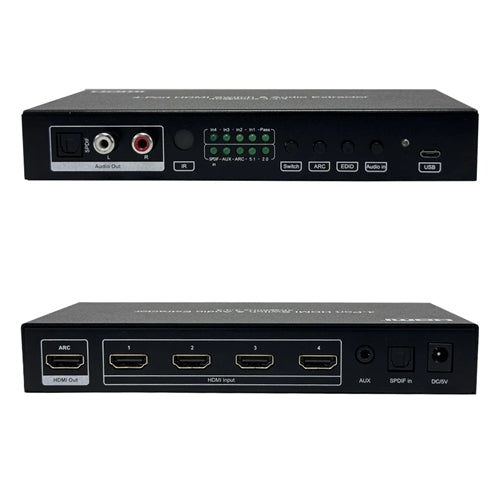

Connector(s)

Input:

  • 4 x HDMI Female
  • 1 x Analog Audio in
  • 1 x SPDIF Audio in

Output:

  • 1 x HDMI ARC Female
  • 1 x SPDIF Audio out
  • 1 x Analog Audio out

Performance

  • Max Resolution 4k@60hz YUV4:4:4
  • Function ARC HDR10 and CEC(only input)
  • HDMI Version HDMI 2.0
  • Bandwidth 18Gbps
  • HDCP version HDCP2.2 HDCP1.4(Auto choose depend TV version)
  • Control ways Switch button and remoter control
  • Audio Analog audio 2.0, SPDIF 5.1, audio extraction
  • Audio format Dolby True HD and DTS-HD master audio(HDMI out)
  • Distance 1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m
  • 3D Support No

Environmental

  • RoHS Yes

Certification(s)

  • CE Yes
  • FCC Yes

Packaging Information

  • Package Quantity 1
  • Product Weight 1.0 lbs [0.45kg]
  • Package Weight 1.46 lbs [0.66kg]

Contents

Included in Package

  • 1 - HDMI Switch

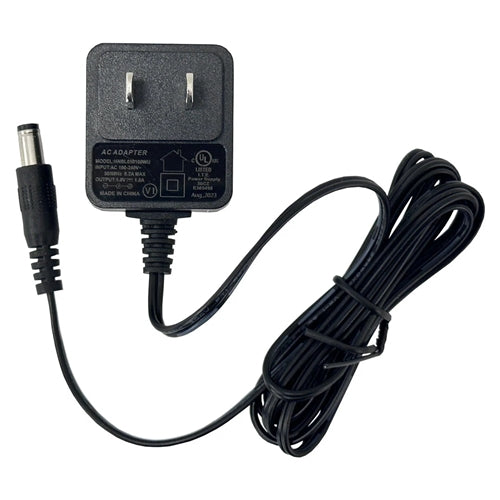

  • 1 - DC5V Power Adapter
  • 1 - Manual

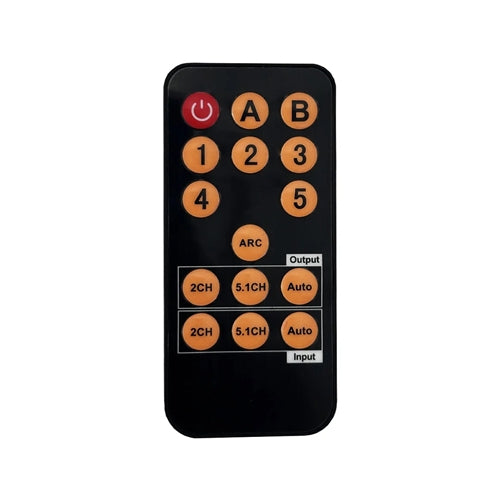

  • 1 - Remote Control
