Phantom Cables

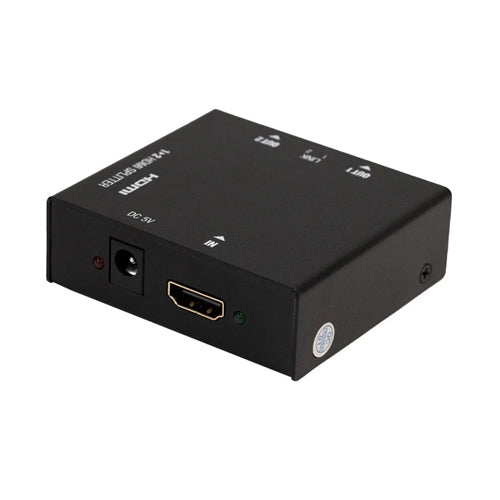

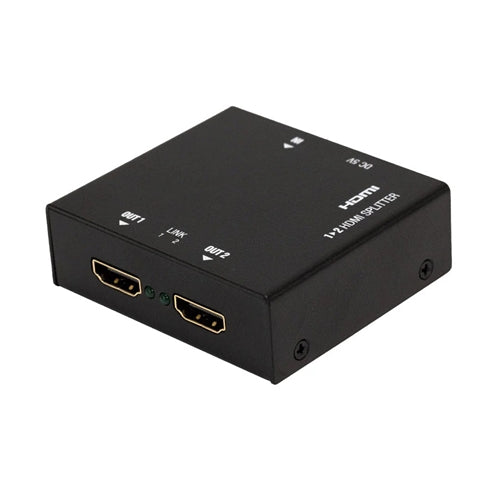

Phantom Cables VP-HDMI-204 1X2 HDMI Splitter, 4K x 2k@60Hz, Edid, HDCP, Yuv 4:2:0

Phantom Cables VP-HDMI-204 1X2 HDMI Splitter, 4K x 2k@60Hz, Edid, HDCP, Yuv 4:2:0

B&E Part Number:  VP-HDMI-204

$34.14 CAD /Each
/Each $34.14 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 4
B&E Saskatoon: 4

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

This 1x2 HDMI splitter enables you to display one HDMI device to two HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors.

Features:

  • Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays
  • Supports resolution up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0)
  • Compatible with HDMI 1.4; video bandwidth up to 10.2Gbps
  • Supports PCM2.0, DTS, Dolby, LPCM Max CH7.1
  • Supports 3D, copy EDID

Technical Info


Physical Characteristics

  • Color: Black
  • Housing: Metal Enclosure
  • Operating Temperature: -5℃ ~ 35℃
  • Operating Humidity Range: 5 to 90%RH (No Condensation)

Power

  • Input Voltage: 100~240VAC - 50/60Hz 0.2A Max
  • Power Supply: 5VDC / 1A
  • Power Consumption: 1W (Max)

Compatibility

  • PC to Monitor: Compliant
  • PC to TV: Compliant
  • DVD to Monitor: Compliant
  • DVD to TV: Compliant

Connector(s)

  • Input: 1 x HDMI Female
  • Output: 2 x HDMI Female

Performance

  • HDMI Resolution: Up to Ultra HD 4K*2K (3840x2160@60Hz YUV 4:2:0)
  • HDMI Version: HDMI 1.4
  • Bandwidth: 10.2Gbps
  • 3D Video: Yes
  • HDCP Compliant: Yes, HDCP 1.4
  • Audio: PCM2.0, DTS, Dolby, LPCM Max CH7.1

Approvals

  • Power Adapter: c(UL)us

Environmental

  • RoHS: Compliant

Certification(s)

  • CE: Compliant
  • FCC: Compliant

Packaging Information

  • Package Quantity: 1
  • Product Weight: 0.26 lbs [0.11kg]
  • Package Weight: 0.55 lbs [0.24kg]

Contents

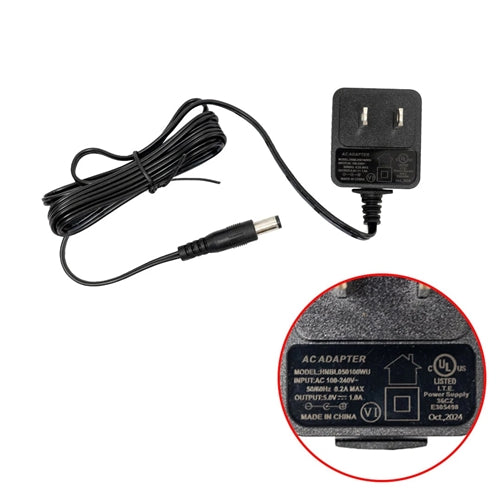

  • Included in Package: 1 - HDMI Splitter, 1 - DC5V/1A Power Adapter, 1 - Manual
