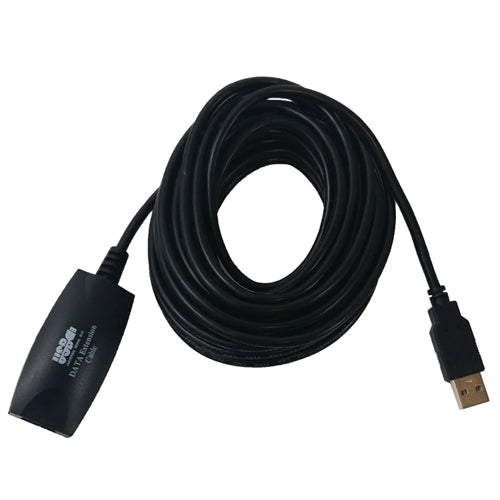

Phantom Cables USB-E316 USB Type-A Male to USB Type-A Female 3.0 Active Extension Cable, 16ft

This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 3.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.

This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.

NOTE: only the 16ft cable supports cascading with 1x1 connection.

Physical Characteristics

• Color: Black
• Connector Plating: Nickel
• Wire Gauge: 28AWG Data, 24AWG Power
• Jacket Material: PVC - Polyvinyl Chloride
• Cable Shielding: 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid
• Strain Relief: Molded PVC

Connector(s)

• Connector A: USB 3.0 Type A Hi-Speed Male
• Connector B: USB 3.0 Type A Hi-Speed Female

Performance

• Rating: USB 3.0 Hi-Speed Compliant Cable
• Speed: 5 Gbps
• Compatibility: Backwards Compatible with 2.0 and 1.0
• Maximum Length: Can be cascaded one time with another USB-E316 Cables

System Requirements

• Windows: Windows 98, ME 2000/XP, Vista, 7, 8, 10
• Apple Mac: OX 9 and OS X
• Linux, Unix: Yes

Environmental

• RoHS: Yes
• Reach: Yes
• Conflict Minerals: Yes

Packaging Information

• Package Quantity: 1
