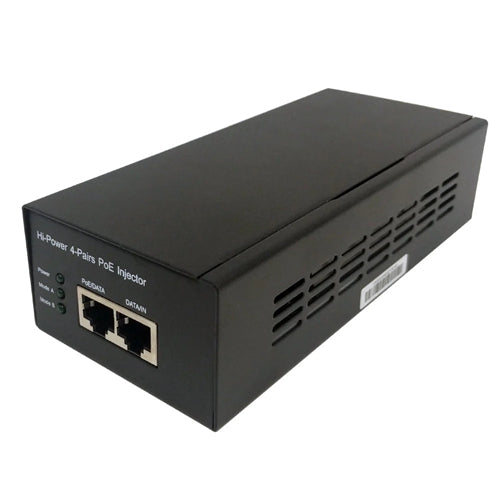

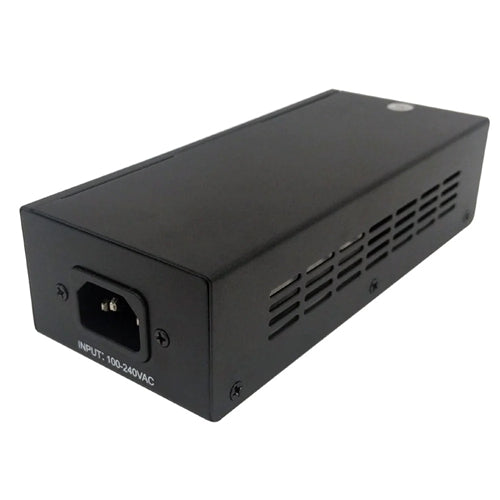

Phantom Cables POE-IN110-60W 1-CHANNEL 10/100/1000M PoE Injector, 60W, Ieee 802.3AF/at

This compact 60 watts PoE injector is a single port passive PoE injector. It can convert standard 100 ~ 240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories and IP security cameras. No external power supply is required providing a compact, cost effective and reliable power solution over existing Ethernet infrastructure.

Features:

• Up to 60W of power on 4-pairs
• Supports 10/100/1000 Base-T applications
• Power input LED indicators
• Internal AC/DC converter
• No need for external power supply
• Easy plug-and-play installation
• Multi-protection

Physical Characteristics

• No. of Channels: 1
• Body Material: Metal Enclosure
• Operating Temperature: -0°C to 40°C
• Storage Temperature: -10°C to 50°C
• Operating Humidity: Maximum 85% (no condensation)
• Storage Humidity: Maximum 90% (no condensation)
• Dimensions: 168 x 73.5 x 44mm
• Connectors: Shielded RJ45, EIA 568A and 568B
• Indicators: PWR Indicator: AC Power
• PoE Indicator: Channel Power

Performance

• Pass Through Data Rates: 10/100/1000 Mbps
• Max Power: 60 Watts
• PoE Pin Assignment & Polarity: 1/2 (-), 3/6(+), 4/5(+), 7/8(-)
• PoE Output Voltage: DC 50V, 1.2A
• User Port Power: 30W & 60W
• AC Input Current/Voltage: 0.5A / 100 to 240 VAC
• Power Consumption: 1 Watts
• Frequency: 50 to 60 Hz
• Over Current Protection: Yes
• Over Load Protection: Yes
• Over Voltage Protection: Yes
• Anti-interference Protection: Yes

Approval

• c(UL)us: Yes
• CE, FCC: Yes
