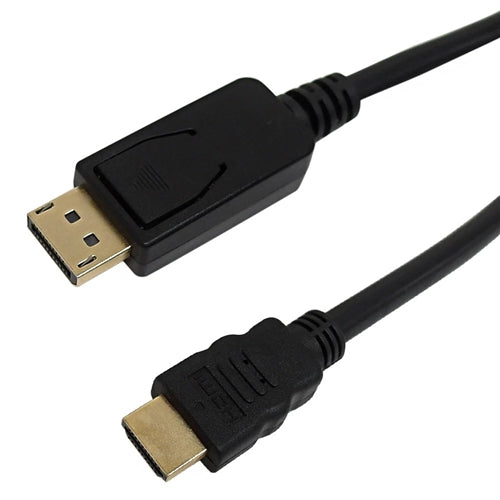

Phantom Cables DP-HDMI-10K Displayport Male to HDMI Male Cable with Audio, 4K x 2K 30Hz, 28AWG, CL3/FT4, 10ft

This cable has a DisplayPort male on one end and a HDMI male on the other. It is used to connect a DP source to a HDMI display. It cannot be used to connect a HDMI source to a DisplayPort Monitor.

Features:

• Supports DisplayPort1.2 and 4 lanes.
• Supports DisplayPort 1.2a input and HDMI1.4b output.
• Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2, 8/10/12bpc.
• Supports 10/12-bit deep color 1080p up to 2.25Gbps and 3D video formats (720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24Hz, 1080P@50/59.94/60Hz) up to 2.97Gbps.
• Supports HDCP bypass.
• Supports up to 8 channel LPCM, compressed audio (AC-3,DTS) and HBR audio format.
• Supports up to 192 khz audio frame rate and up to 24-bit audio sample size.

Physical Characteristics

• Color: Black
• Connector Plating: Nickel
• Wire Gauge: 28 AWG
• Jacket Fire Rating: CL3/FT4
• Cable Type: Passive
• Cable Outer Diameter: 7.3mm
• Operating Temperature & Humidity: 0 ? to +45?
• 10% to 85 % RH (no condensation)
• Storage Temperature & Humidity: -10? to +80?
• 5% to 90 % RH (no condensation)

Connectors

• Connector A: HDMI Male
• Connector B: DisplayPort Male

Performance

• Bandwidth: 10.2Gbps
• Resolution: Up to 4Kx2K (4096 x 2160) @ 30Hz
• Vertical Frequency Range: 50/60Hz
• Video Amplifier Bandwidth: 3.0Gbps
• Power Consumption: 0.4W
• 3D Support: Compliant
• DP Version: v1.2
• HDMI Version: v1.4

Approvals

• c(UL)us: Approved Cable

Environmental

• RoHS: Compliant
• Reach: Compliant
• Conflict Minerals: Compliant

Packaging Information

• Packaging Quantity: 1
