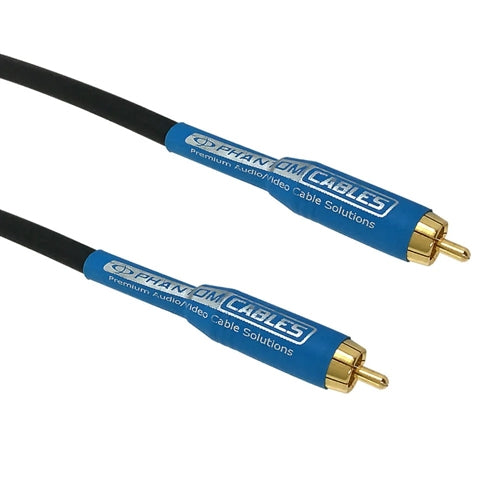

Phantom Cables DIG-RCA1-06 Premium Digital Coax RCA Male to RCA Male Cable 18AWG, 6ft

Phantom Cables DIG-RCA1-06 Premium Digital Coax RCA Male to RCA Male Cable 18AWG, 6ft

B&E Part Number:  DIG-RCA1-06

$19.93 CAD /Each
/Each $19.93 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 2
B&E Saskatoon: 0

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

This digital audio coaxial cable has a RCA male on one end and a RCA male on the other. It is typically used to connect audio equipment which requires a S/PDIF digital signal but can also be used as a composite video cable as well.

  • Constructed of double shielded, 75 ohm, RG6, 18 awg, digital coax cable for ultra crisp sounding digital audio
  • FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
  • Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
  • Cables nominal capacitance is an exceptional 17.3 pf/ft and has a nominal attenuation of 3.10 dB/100ft @ 200Mhz
  • High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
  • The connector backshells are made of a durable, zinc plated metal alloy
  • FT4 riser fire rated jacket for in-wall use
  • Lead-free solder is used in order to reduce loss and maximize conductivity

Technical Info


Physical Characteristics
  • Color: Black
  • Connector Plating: Gold
  • Cable Type: RG6
  • Cable Diameter: 6.86mm
  • Wire Gauge: 18AWG
  • Jacket Material: PVC - Polyvinyl Chloride
  • Fire Rating: FT4 (Riser CMR)
  • Cable Shielding: Dual Shielding 100% aluminum/mylar foil, plus a 95% tinned copper braid

Connectors
  • Connector A: RCA Male
  • Connector B: RCA Male
  • Connector A Diameter: 12.7 mm
  • Connector B Diameter: 12.7 mm

Approvals
  • cUL: Compliant - Cable

Environmental
  • RoHS: Compliant

Package Information
  • Package Quantity: 1
