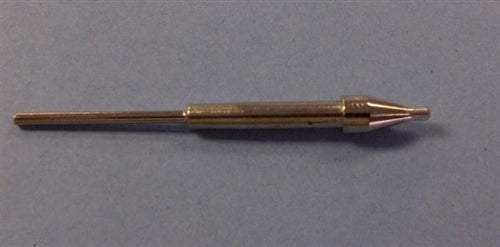

Pace 1121-0628 .030" ID Thermo Drive Endura Desoldering Tip, Compatible with SX-80 Handpiece

Extended reach Thermo-Drive desoldering tip Compatible with SX-70 and SX-80 desoldering handpieces, 3/16" shank diameter
Inside diameter : 0.030" / 0.78mm
Outside diameter : 0.090" / 2.29mm
Brand name(s) : Pace Electronics, Paceworldwide, Pace Incorporated

Tip selection guide (Adobe Reader required to read datasheet)

Tips Selection: One of the most important aspects for successful solder removal is the selection of the proper size tip. There are several points to keep in mind.

1 The Inside Diameter (I.D.) of the tip must be large enough to fit over the lead, while providing sufficient room so that air and solder can be drawn through the tip.
2 The Outside Diameter (O.D.) of the tip must be slightly smaller than the diameter of the pad to prevent tip contact to the board laminate and minimize the possibility of damage.
