Osepp MEG-03 Mega 2560 R3 Plus 256k Board, Arduino Return Policy: Experimental Use, Not Returnable

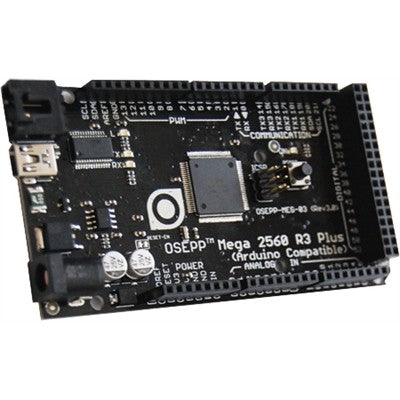

OSEPPâ„¢ Mega 2560 R3 Plus
OVERVIEW
Larger than the original UNO board, this microcontroller has more flash memory, SRAM, EEPROM and I/O pins. This board is perfect for projects that require a lot of inputs/outputs or that require more complex programs that cannot fit into the smaller memory of the ATmega328P. New in R3 is added SCL/SDA pins next to AREF header and also added IOREF pin to power header. Built on the 'open-source electronics prototyping platform', and compatible with existing Arduino software lilbraries.

For use with Arduino experimenter kits

Return / exchange policy : Due to the "experimental" application use of this product, this item is not returnable.

HIGHLIGHTS
• 8-bit AVR RISC-based microcontroller running at 16 MHz
• 8x more flash and 4x more SRAM and EEPROM than the Uno
• Connects to a computer via a standard USB cable
• Flexible power source (USB or DC power)
• ICSP header for programming microcontroller
• Compatible with existing Arduino software libraries
• Compatible with the Ethernet and Motor Controller Shields

This board is based on the Arduino Mega 2560 designed by Arduino, and is released under the Creative Commons Attribution Share-Alike License.

The original design can be found at: http://arduino.cc/en/Main/ArduinoBoardMega2560

Features:

• Microcontroller: ATmega2560
• Clock: 16MHz
• Flash: 256KB
• SRAM: 8KB
• EEPROM: 4KB
• Operating voltage: 5VDC
• Input voltage: 6-12VDC
• Digital I/O pins: 54, including 14 for PWM
• Analog I/O pins: 16
• Other connections: Mini-USB, ICSP for ATmega2560
• Dimensions: 107.5 x 54 x 15.5mm
• Power source: USB or external DC supply
