Osepp

Osepp FTD-01 Ftdi Breakout Board, Arduino Return Policy: Experimental Use, Not Returnable

Osepp FTD-01 Ftdi Breakout Board, Arduino Return Policy: Experimental Use, Not Returnable

B&E Part Number:  FTD01

$26.00 CAD /Each
/Each $26.00 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 3
B&E Saskatoon: 2

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

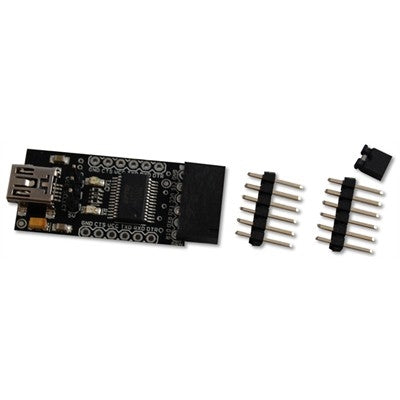

SEPP™ FTDI Breakout Board
OVERVIEW
The OSEPP FTDI is a USB-to-serial (TTL) converter for serial communication with devices like the OSEPP Pro and Pro Mini boards. The board uses the popular FT232RL chip from FTDI. Specifications: Integrated Circuit - FTDI FT232RL; Dimensions (without additional pin headers) - 38.0 x 18.0 x 12.0 mm; Power Source - Mini-USB; Support Operating Systems - Microsoft Windows, Mac OS X, Linux, Android.

For use with Arduino experimenter kits

Return / exchange policy : Due to the "experimental" application use of this product, this item is not returnable.

Highlights
• Pinout compatible with Arduino boards such as OSEPP brand
• Form factor is breadboard friendly
• Selectable common collector voltage (VCC) 3.3 or 5 V

Features:
  • Pinout is designed for Arduino and compatible without built-in USB-to-serial converter, such as the Pro and Pro Mini.
  • VCC pin can be configured as 3.3 or 5 V by placing a jumper; this allows the board to be used with boards that operate on either 3.3 or 5 V nominal voltage
  • The FTDI board is designed for flexible connections to other boards; its female header connects easily to the male pin header of the OSEPP Pro; furthermore, connecting the provided male pin headers to the female pin header allows connections to pinout of the Pro Mini; the male pin headers can also be soldered to the FTDI board to make it breadboard mountable.
  • Drivers for the Virtual COM Port (VCP) is available for virtually all mainstream operating systems
