On Semi Triac 16A/800V Isolated Tab TO220AB BTA16-800BW3G

16A / 800v triac , silicon bidirectional thyristor , TO220AB
Designed for high performance full-wave ac control applications where high noise immunity and high commutating di/dt are required.

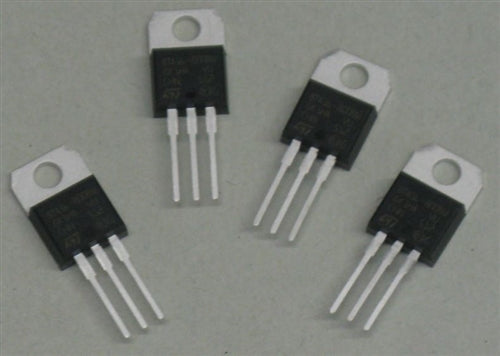

Image for illustrative purpose only. Sold as the individual piece.

Features:
• Blocking Voltage to 800 V
• On-State Current Rating of 16 A RMS at 80°C
• Uniform Gate Trigger Currents in Three Quadrants
• High Immunity to dV/dt - 1500 V/ms minimum at 125°C
• Minimizes Snubber Networks for Protection
• Industry Standard TO-220AB Package
• High commutating dI/dt - 4.0 A/ms minimum at 125°C
• Internally Isolated (2500 VRMS)
• These are Pb-Free Devices
