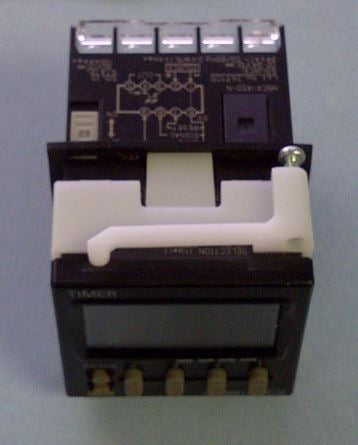

Omron Relay Assy. Multi.fncth. H5CX-ASD-N **CLEARANCE**

Multifunction digital timer , screw terminal termination

Features :
Bright, easy to view LCD display
Output type : transistor (solid state) , 100ma Maximum load @ 30Vdc
Universal input voltage , coil : 12 - 24Vdc / 24Vac
Time ranges : 9.999 seconds to 9999 hours (selectable with DIP switch combinations)

Timer functions :
A : Signal On delay 1 (timer resets when power comes ON) , A-1 Signal On delay 2 (timer resets when power comes ON)
A-2 Power On delay 1 (timer resets when power comes ON) , A-3 Power On Delay 2 (timer does not reset when power comes ON)
B: Repeat cycle 1 (timer resets when power comes ON) , B-1: Repeat cycle 2 (timer does not reset when power comes ON)
D: Signal Off delay (timer resets when power comes ON), E: Interval (timer resets when power comes ON)
F: Cumulative (timer does not reset when power comes ON) , Z: On/Off duty adjustable flicker
