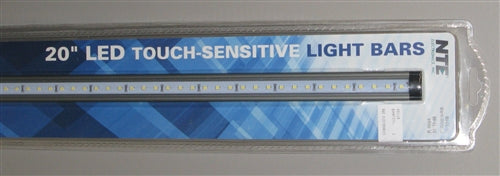

NTE LED Touch Dimmable Bar (500mm Length) White 5W 69LL18 (39) 2835 LEDs

39 LED touch−dimmable light bar , cool white (6000K) 19.68"/500mm 5W
Number of LED Bars connected in series: 5 maximum
Brand name (s) : NTE Electronics

Features:
Includes Installation Clips and 12VDC regulated power supply
Dimmable, OFF− 6%− 50%− 100%− OFF
CRI 80Ra, CE, RoHS

Specifications:
Voltage: 12VDC regulated power supply
LED Type: SMD2835
IP Grade: Non−Waterproof IP40
Operating Temperature: −20 to +45C
Lifespan: 35000 hours
Base: Gray Aluminum Housing
Top Cover : Clear Lens



Operating Instructions
These LED Light Bars can be operated in either a stable bright mode or in a dimmable mode, depending on which end of the LED Light B the power supply is connected. To operate in dimmable mode, connect the power supply to the end of the Light Bar where the circuit board is visible . For stable bright mode, connect the powerr supply to the end opposite the visible circuit board. LED Light Bars may be connected together using either a straight ( 69−LLA−02) or 90 degree (69−LLA−03) bar−to−bar connector. However, when connecting multiple LED Light Bars, you must calculate and choose the appropriate power supply according to the power required Minimum power supply should be more than 20 % of the total power required. The absolute maximum value for connecting multiple Light Bars together is 36W, 3A. However, you WILL NOT achieve full brightness at 36W. The ideal, recommended wattage should not exceed 29W for 100% brightness.
