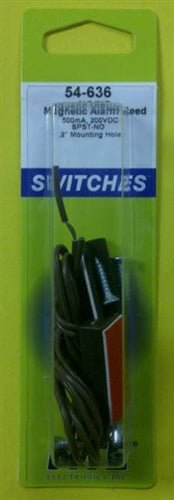

NTE 54-636 Magnetic Reed Switch, 10W/Va SPST-NO, Adhesive & Screw Mount, Brown W/18" Leads, for Closed Loop Alarm System

Magnetic Alarm Reed Switch

Features

• Mini Stick−On Contact with Flange Center Leads

• 18" Leads

• Adhesive and Screw Mount

• Standard Gap: 1" (25mm)

Contact Rating : 10W/VA

Contact Resistance : 150 milliohms.

Contact Material : Ruthenium Oxide over Palladium

Switching Voltage : 200 VDC max.

Switching Current : 500mA max.

Insulation Resistance : 10 gigohms

Shock Resistance : 30G for 11mS

Vibration Resistance : 20G (10 to 1000Hz)

Life Expectancy : 20,000,000 cycles (resistive load, 12VDC, 250mA)

Terminal Type : Wire Leads

Mounting Hole : .200" (5mm)
