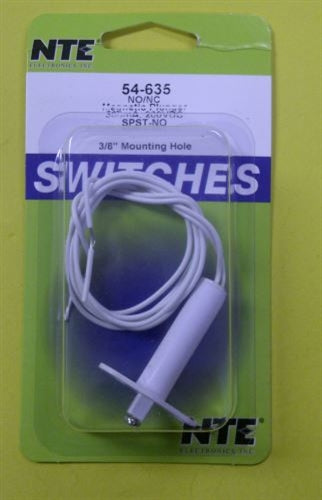

NTE 54-635 Magnetic Plunger Switch, 10W/Va SPST-NO, 3/8" Diameter, White with 18" Leads, for Closed Loop Alarm System

Magnetic Plunger Switch

CIrcuitry : SPST , normally open

Action: NO for closed loop system

Actuator: Magnetic

Features

• 3/8" Dia Mounting Hole

• Flange for Reliable Retention

• 3mm Pre−Travel Stroke and 7

mm Overall Operating Stroke

• 18" Long Wire Leads

• Screw Provided

Contact Rating : 10W/VA

Contact Resistance :150 milliohms.

Contact Material : Ruthenium Oxide over Palladium

Switching Voltage : 200 VDC max.

Switching Current : 500mA max.

Insulation Resistance : 10 gigohms

Shock Resistance : 30G for 11mS

Vibration Resistance : 20G (10 to 1000Hz)

Life Expectancy : 20,000,000 cycles (resistive load, 12VDC, 250mA)

Terminal Typ : Wire Leads

Mounting Hole : .375" (9mm)
