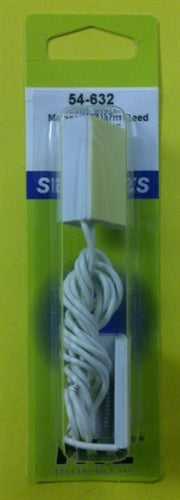

NTE 54-632 Magnetic Reed Switch, 10W/Va SPST-NO, Adhesive & Screw Mount, White W/18" Leads, for Closed Loop Alarm System

Magnetic Alarm Reed Switch

CIrcuitry : SPST , normally open

Action: NO for closed loop system

Actuator: Magnetic

Features

• Mini Stick−On Surface Mount Contact with Side Leads

• 18" Long Side Wire Leads

• Adhesive & Screw Mounting

• Operate Gap 3/4" (19mm) min

Contact Rating: 10W/VA

Contact Resistance: 150 milliohms.

Contact Material: Ruthenium Oxide over Palladium

Switching Voltage: 200 VDC max.

Switching Current: 500mA max

Insulation Resistance : 10 gigohms

Shock Resistance : 30G for 11mS

Vibration Resistance: 20G (10 to 1000Hz)

Life Expectancy: 20,000,000 cycles (resistive load, 12VDC, 250mA)

Operating Gap: .748" (19mm) min.

Terminal Type : Wire Leads

Mounting Hole : .250" (6.35mm)
