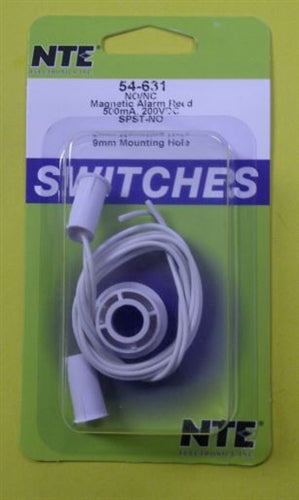

NTE 54-631 Resessed Mount Magnetic Reed Switch, 10W/Va SPST-NO, 3/8" White with 18" Leads, for Closed Loop Alarm System

Magnetic Alarm Reed Switch

CIrcuitry : SPST , normally open

Action: NO for closed loop system

Actuator: Magnetic

Features

• 3/8" (9mm) Dia with Adaptor Holder

• Wide Operating Gap 3/4" (19mm) min.

• Easy & Quick Installation

• 3/4" Adapter / Holder

Contact Rating : 10W/VA

Contact Resistance: 150 milliohms.

Contact Material: Ruthenium Oxide over Palladium

Switching Voltage: 200 VDC max.

Switching Current: 500mA max.

Insulation Resistance: 10 gigohms

Shock Resistance: 30G for 11mS

Vibration Resistance: 20G (10 to 1000Hz)

Life Expectancy: 20,000,000 cy

cles (resistive load, 12VDC, 250mA)

Operating Gap : .748" (19mm) min.

Terminal Type : Wire Leads

Mounting Hole : .375" (9mm)
