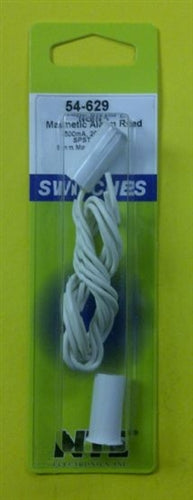

NTE 54-629 Resessed Mount Magnetic Reed Switch, 10W/Va SPST-NO, 3/8" White with 18" Leads, for Closed Loop Alarm System

Magnetic Alarm Reed Switch

CIrcuitry : SPST , normally open

Action: NO for closed loop system

Actuator: Magnetic

Features

• 3/8" (9mm) Dia with 18" Long Wire Leads

• Easy & Quick Installation

• Longer Length

• Operate Gap 3/4" (19mm) min

Specifications

Contact Rating:10W/VA

Contact Resistance: 150 milliohms

Contact Material: Ruthenium Oxide over Palladium

Switching Voltage: 200 VDC max.

Switching Current: 500mA max.

Insulation Resistance: 10 gigohms

Shock Resistance: 30G for 11mS

Vibration Resistance:20G (10 to 1000Hz)

Life Expectancy : 20,000,000 cycles (resistive load, 12VDC, 250mA)

Operating Gap : .748" (19mm) min.

Terminal Type : Wire Leads

Mounting Hole: .375" (9mm)
