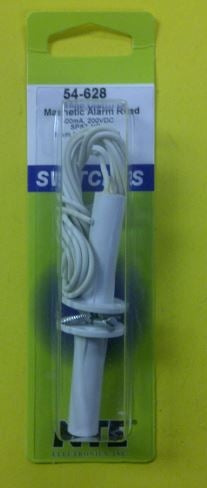

NTE 54-628 Resessed Mount Magnetic Reed Switch, 10W/Va SPST-NO, 3/8" White with 18" Leads, for Closed Loop Alarm System

Magnetic Alarm Reed Switch

CIrcuitry: SPST , normally open

Action: NO for closed loop system

Actuator: Magnetic

Features

• 3/8" (9mm) Diameter Press Fit

• Operating Gap 5/8"(16mm) min.

• 18" Wire Leads

• 3/4" (19mm) Collar Flange for Bett

er Retention

Contact Rating: 10W/VA

Contact Resistance: 150 milliohms

Contact Material: Ruthenium Oxide over Palladium

Switching Voltage: 200V

DC max.

Switching Current: 500mA max

Insulation Resistance: 10 gigohms

Shock Resistance:30G for 11mS

Vibration Resistance: 20G (10 to 1000Hz)

Life Expectancy: 20,000,000 cycles

(resistive load, 12VDC,250mA)

Operating Gap: .629" (16mm) min

Terminal Type: Wire Leads

Mounting Hole: .375" (9mm
