Neutrik

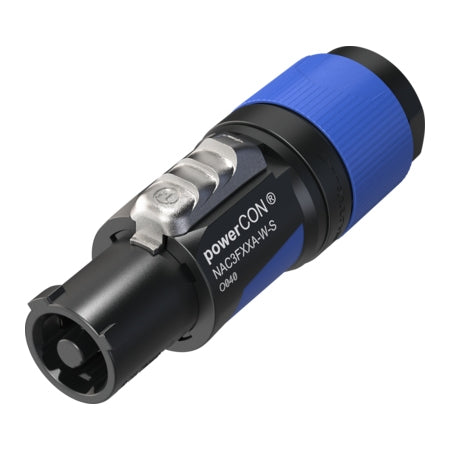

Neutrik NAC3FXXA-W-S 3 Pole Blue Powercon Lockable Cable Connector, Color Coded for "Power in"

Neutrik NAC3FXXA-W-S 3 Pole Blue Powercon Lockable Cable Connector, Color Coded for "Power in"

For Termination Use PZ1X1-15/16

B&E Part Number:  NAC3FXXA-W-S

$13.79 CAD /Each
/Each $13.79 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 2
B&E Saskatoon: 4

On Order with Supplier: 50

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Features & Benefits:

  • IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • UL US 498 / UL CA 498
  • Ergonomic design with slip-proof two-component molded housing
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing
